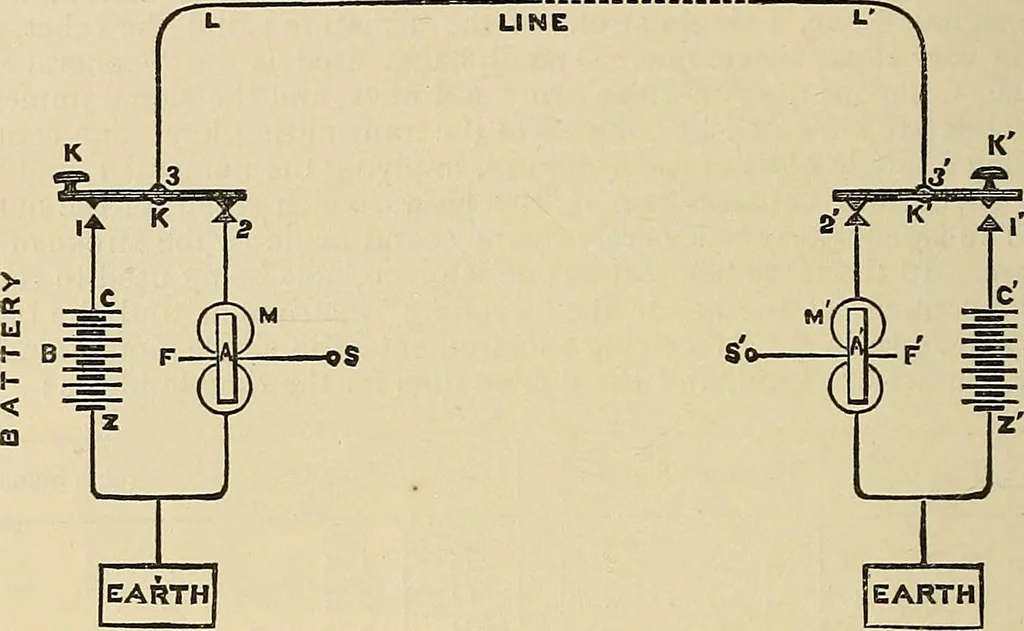

GRAPH. in Great Britain came into the hands of the Post-office authorities, here,also, the Morse is the system most approved. The general arrangement of the transmitters, batteries, receiving instru-ments, &c., should be first studied in its simplest form, as represented bythe diagram, Fig.… … =-B Fig. 285.—Connections of a Telegraphic Line, with Morse Instruments. fore drawn down. In the position of the connections, as represented, nocurrent is passing, but if K be pressed down so as to make connection at i,at the same time it is broken at 2, a current will pass in from the positive…
