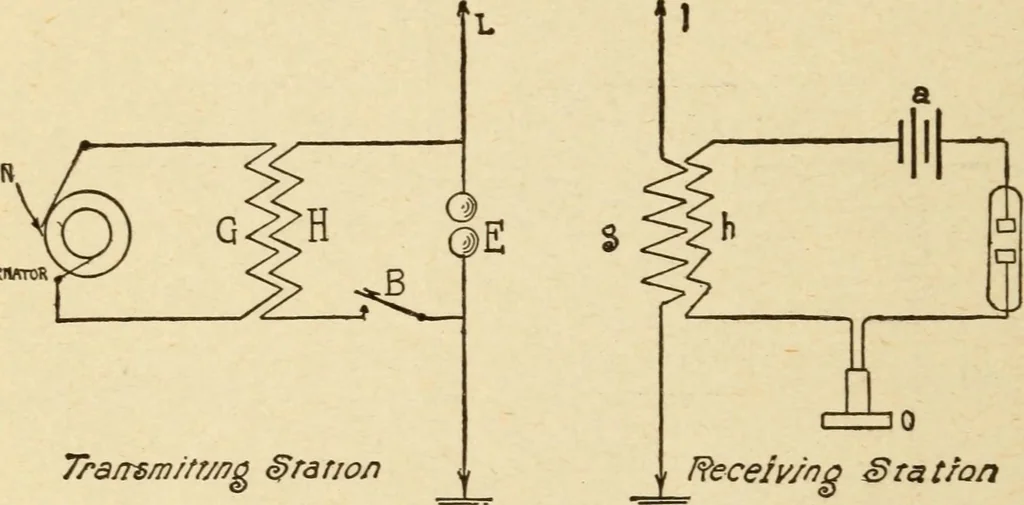

Transmitting (Station WW Pecefv/ng St at ton ■k—a a—Y 3. + 5 Earth E«ot> Fig. 138. EflBTH These stations show instead of the usual connection^ith earth a well insulated capacity plate, M (m). Fig. 138shows the Slaby-Arco system. Fig 139, shows the Lee deForest-Smythe system. 288 MODERN… … Tra/rsm/twg § ran on C=10 Receiv/no £ rat fan &m* EARTH Fig. 139. The receiving station shows instead of the telegraphicrecorder, a telephone O, by which the operator hears thssignals telegraphed, whose waves affected the coherer. Questions and Answers. Q. Describe a portable apparatus for…
