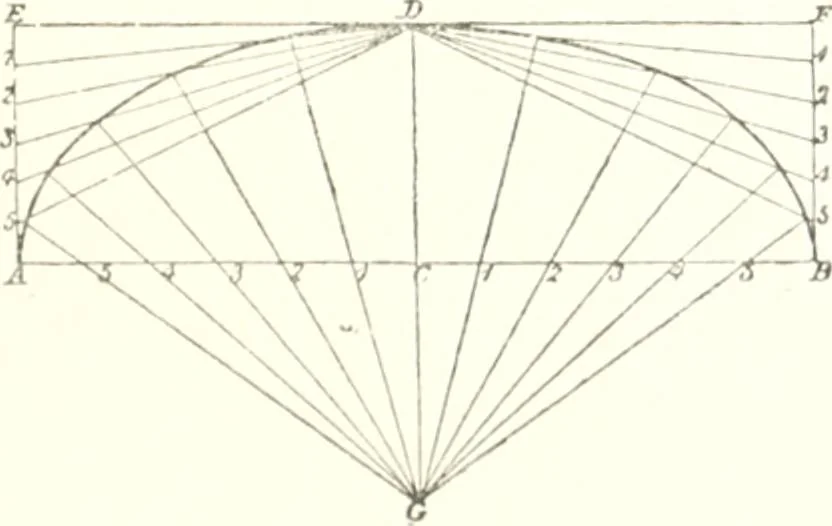

oint D, draw E F parallel to A B, and from thepoints A and B erect the perpendiculars A E and B F. Divide A Eand B F similarly to C A and C B. Produce C D and make C Gr equalCD. From D draw lines to the points 1, 2, 3, &c., in the lines AEand BF; also from Gr draw lines through the points 1, 2,… … Fig. 27.
