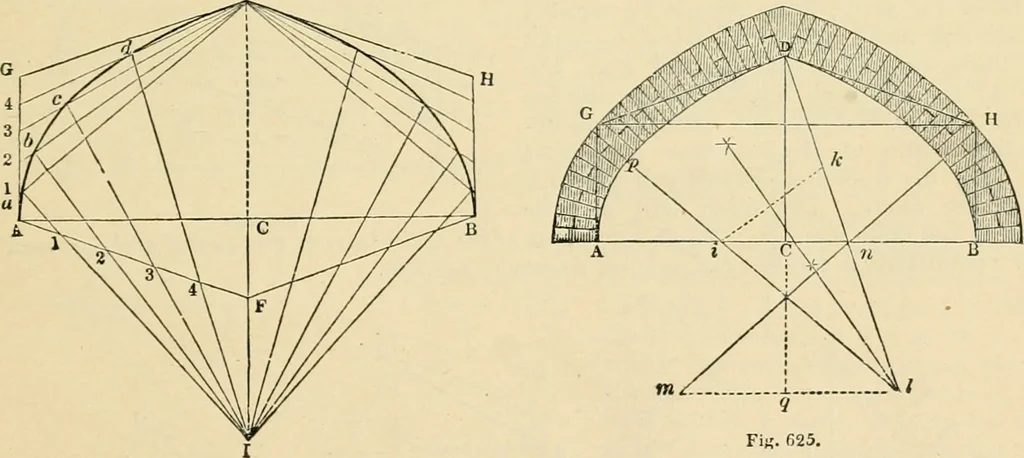

Fig. 624. (CI is made equal to 15C ) AB equal in length to the span of the arch. Bisect AB in C by the perpendicular DI.and draw AG and BII parallel to DI. Make CD e(]ual to the height of the arcli, and theangles CDG and CDH each equal to half the vertical angle; make CFe(|ual to the dif-ference…
