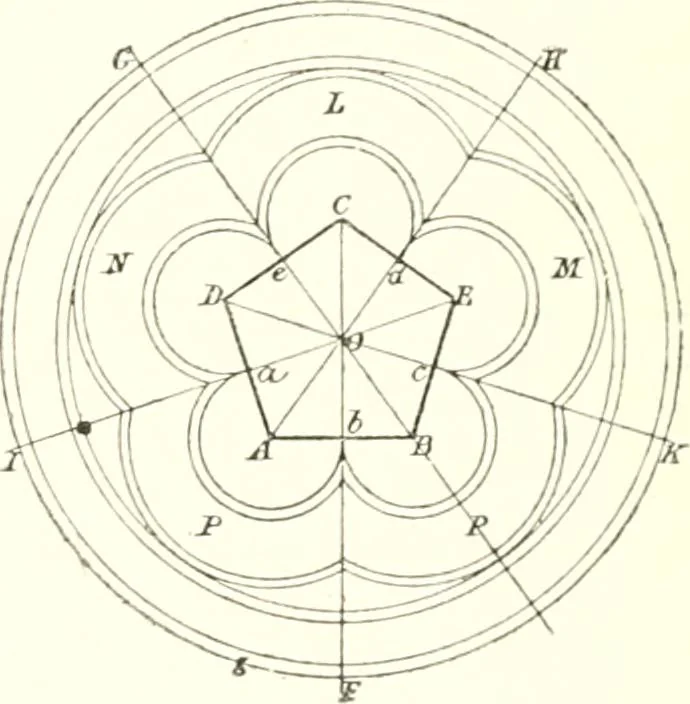

To construct the Gothic Cinquefoil.—Having drawn the regularpentagon ABODE (Fig. 37), bisect the angles and produce thebisecting lines to FGrll I K, which will cut the sides of the pentagonin a, J, ^, c/, e. From A B C D and E as centres, with radius A a or A ^,equal to one-half of the side of the…
