Draw frames and fly frames : being a practical treatise on the above machines (1898)

Thornley, T. (Thomas) · Manchester : A. Heywood · leaf 137

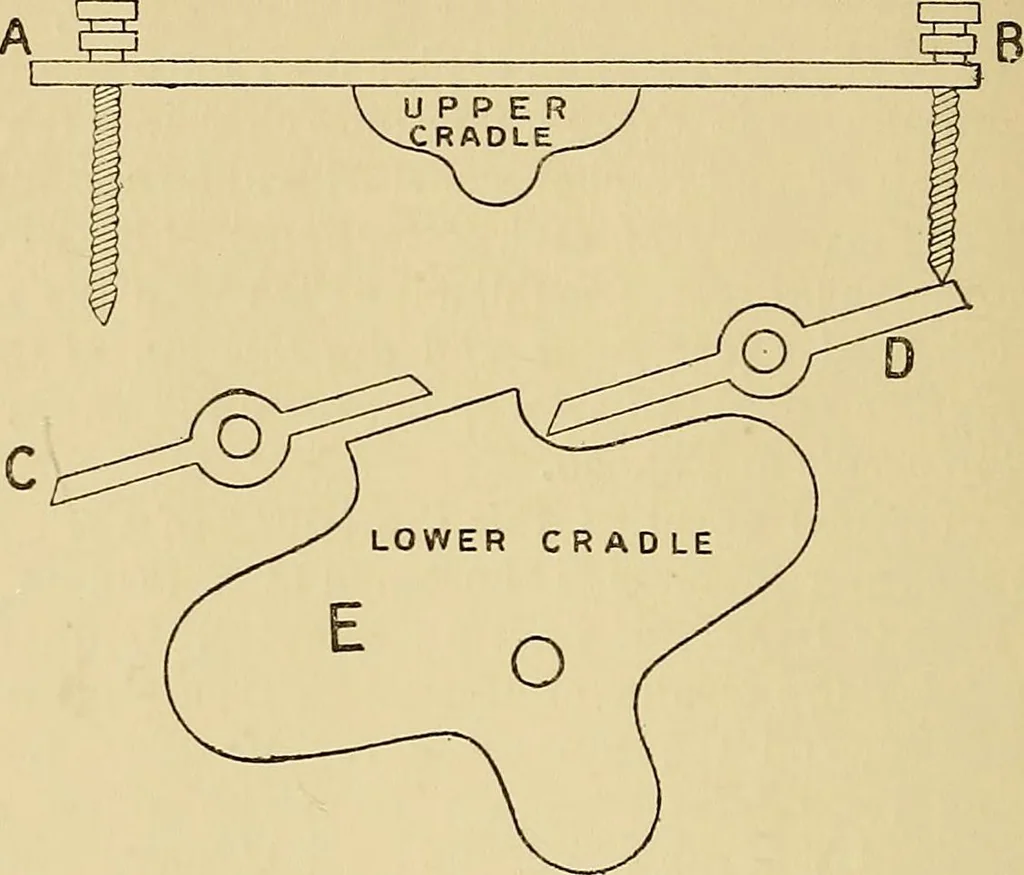

An illustration from Draw frames and fly frames : being a practical treatise on the above machines, 1898, leaf 137 — the lifter itself being made to revolve in theopposite direction. We have thus examined the varionsmovements compassed by each change of the buildingmotion. In consideration of the important results of theaction of the building motion, practical suggestions andremarks of a somewhat exhaustive… … Fig. lifter traverse so as to wind the roving upon the bobbin atthe correct distance from each end of the bobbin, thefolloviring method is generally adopted :— Wind the lifter down so as to have the rovingto wind on the bobbin just as far from the end asmay be required, as at F in Fig. 30. Then set…
