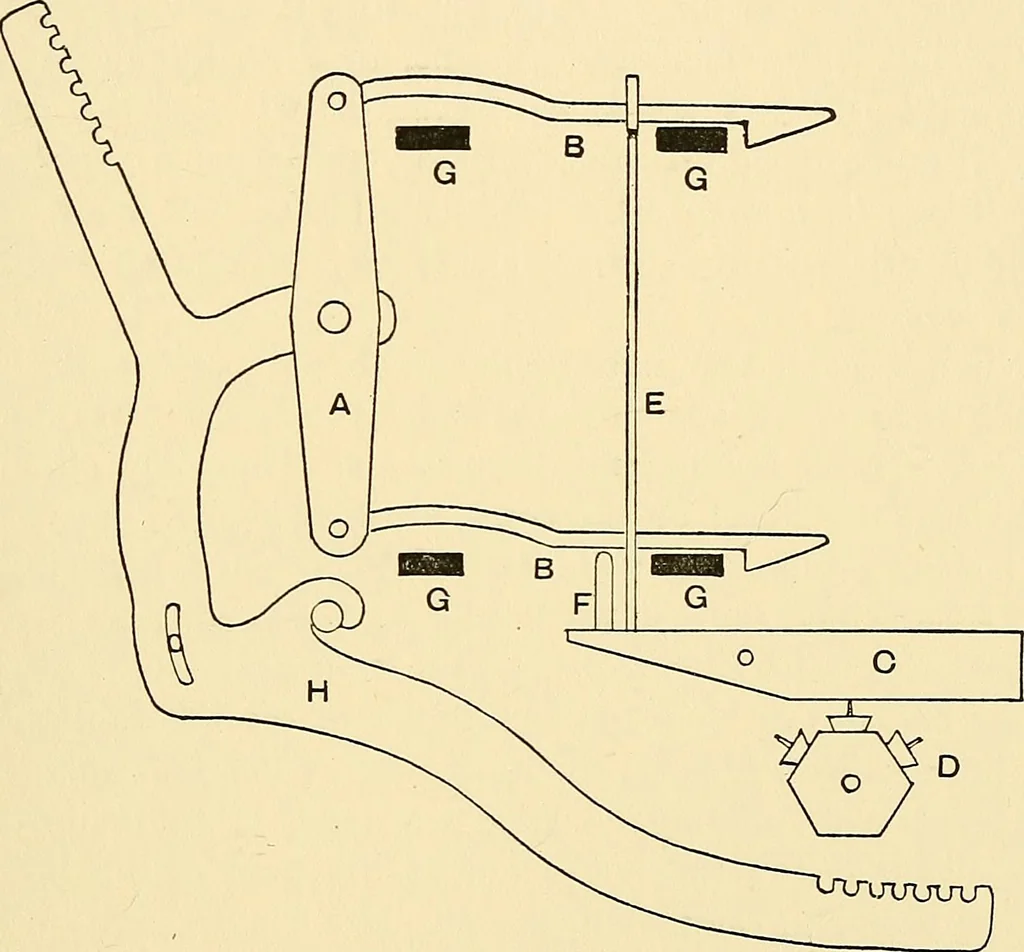

he knives slide. THE DOBBY 41 actuating parts are the lifting bars and the lag cylinder and peggedlags. In this particular machine we find them closely associated(fig. 276). Fixed to the loom crank shaft, a compound pinion wheelcarries on its external side a pin upon which the shaft of an… … Fig. 277.—Keighley Dobby: Lifting and Sinking Motion A, Rocking lever. B, b, Hooks, c, Lag lever, d. Lag cylinder, e, Needle lifting the upper hook.F, Finger lifting the sinking hook, g, Lifting bars or knives, h, Heald shaft lever. to the arms of the latter a to-and-fro motion. On the ends of…
