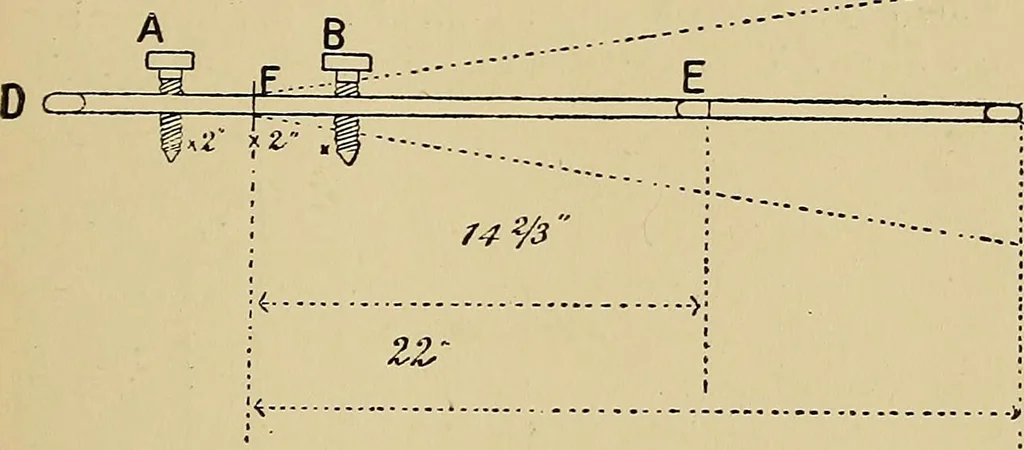

dly, the i|- inches traverse will occupyless time, and the changes will be effected sooner andbefore the lifter has travelled as far as before. A littlefurther reflection will show anyone that such a quicker 131 motion of the upper cradle is secured by the outer extremityC of the rod C D being… … 3=l:6 Fig. 32. reference may be made to the simple lever of the first ordershown in Fig. 32. C D are the two extremities. A B maybe regarded as the two adjusting screws, each 2 from thefulcrum F, E is 14I from the fulcrum, and D is 22.The lifter traverse may be taken at 9 for empty bobbinand 6 for…
