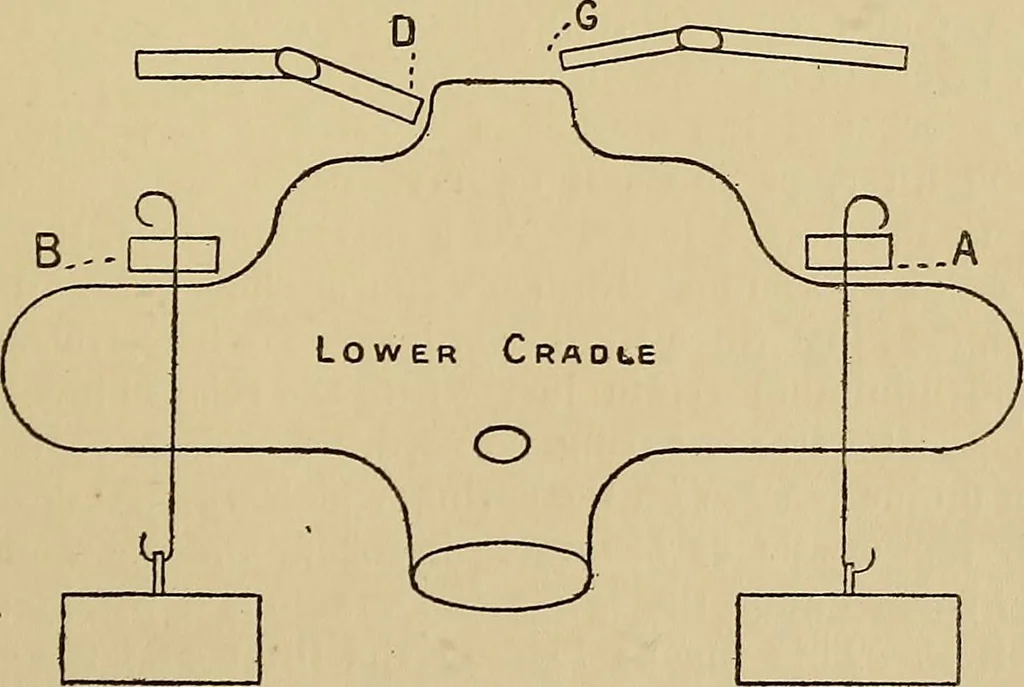

is exceedingly important that the chains, hooks, etc.,in connection with the cradles, should be kept at the correctlength, so that when renewals are made the changes shallbe performed properly. CHAIN TOO SLACK. If a chain be too slack the result is that the hook andweight, or spring attached to it,… … Fig. 38. I50 Fig. 38 shows the lower cradle and the two doublehooks. At B the projection on the double hook is seenresting on the cradle. Often the hook itself serves withoutany other projection. At the time B is resting on thecradle, A on the other side should be raised by the con-nection to the…
