Draw frames and fly frames : being a practical treatise on the above machines (1898)
Thornley, T. (Thomas) · Manchester : A. Heywood · leaf 259

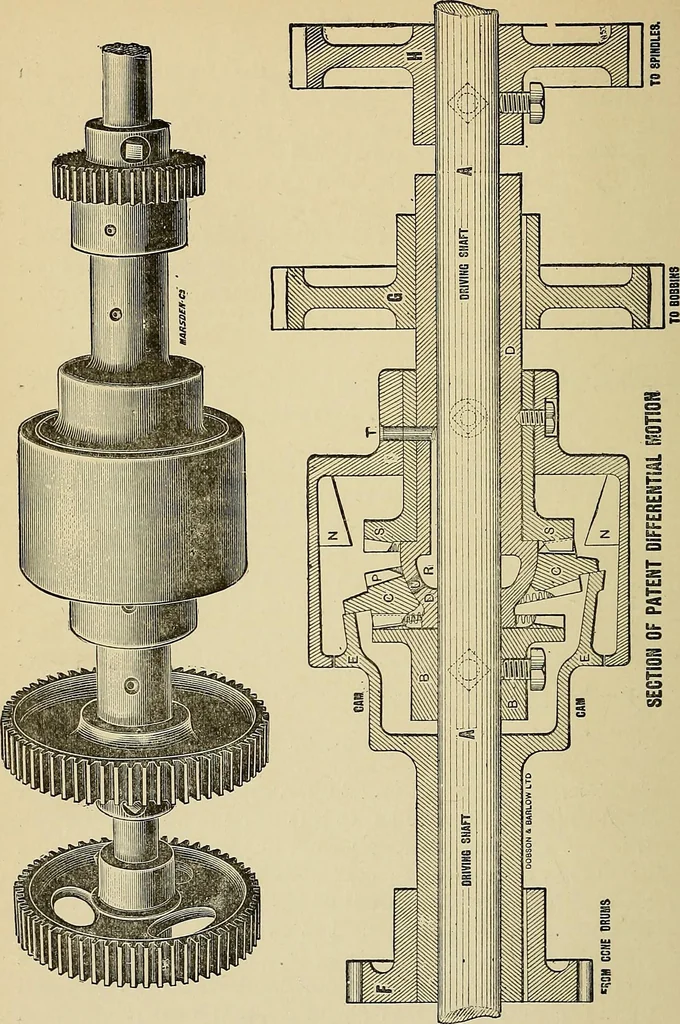

ed bevel B. Gearing into this bevel is a larger one, C,which is mounted on a spherical or ball-bearing D. Thebevel 0 is of a very peculiar construction, and there arealso teeth on the back of it which gear into the toothedwheel S. This latter wheel S is firmly secured to thesleeve of the spherical… … Fig. 57- Fig. 58. 251 and, as in the other new motions, is less than the bobbinwheel G. The wheel F is driven from the cone drum, andis secured to a sleeve which runs loose on the shaft, andterminates on the other end in a cam E. It will be seenthat the peculiarly shaped double wheel C has a sort…
Textile machinery
