Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 266

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 266

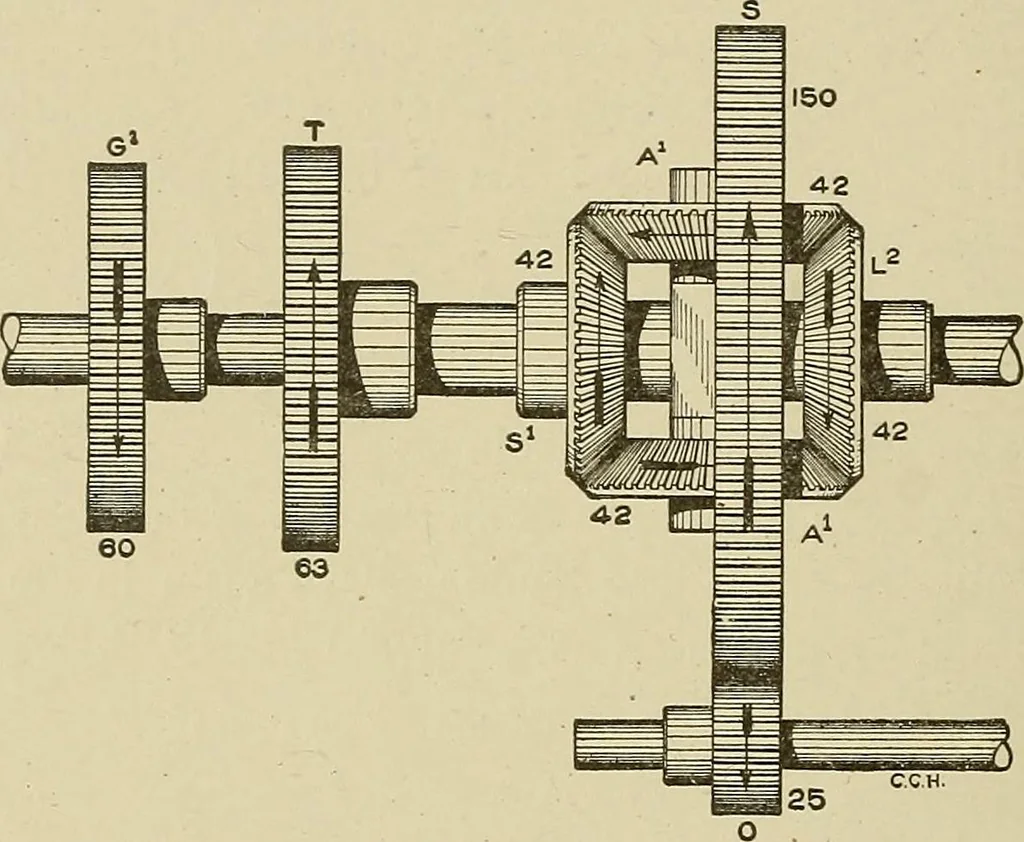

e same as the sleevegear. The mitre gear, L?, is fast upon the driving shaft and themitre gear, S^, is fast upon the hub of the sleeve gear. The gears, S^ and L^, turn in opposite directions and, if theyare run at the same speed, the sun wheel will remain stationary.But if S^ is run at a greater… … Fig. 165. Fly Frame Differential Gearing. revolutions, in the opposite direction, the sun wheel will turn onerevolution or one-half the difference between the revolutions ofthe gears, S^ and JJ, but in the direction of S^ The speed of the driving shaft is 400 R.P.M. and, as we havefound, the speed…

Textile fabrics · Textile industry
