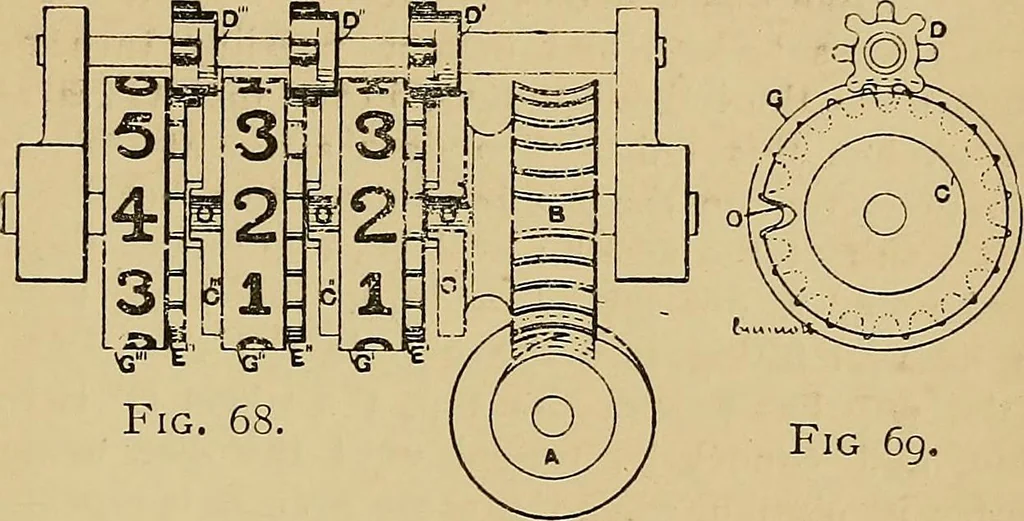

omewhatcurious, and may be gathered from Figs. 68 and 6g, andfrom the following description. As is usual with frameindicators, the instrument is driven from the front roller bymeans of a worm and a worm wheel. Secured to the same 373 stud as this worm wheel is a second worm A driving asecond worm… … Fig. 68 Fig 6g. Front Roller i ist Wheel. 2nd Wheel I •• 39 • •• 25 li . •• 39 • 20 ly-e • •• 39 . 21 The wheel B is in one piece, with the disc C^ connectedto the third dial, the remaining discs C^ and C^ beingconnected to the second and third dial cylinders re-spectively, and all running loose on…
