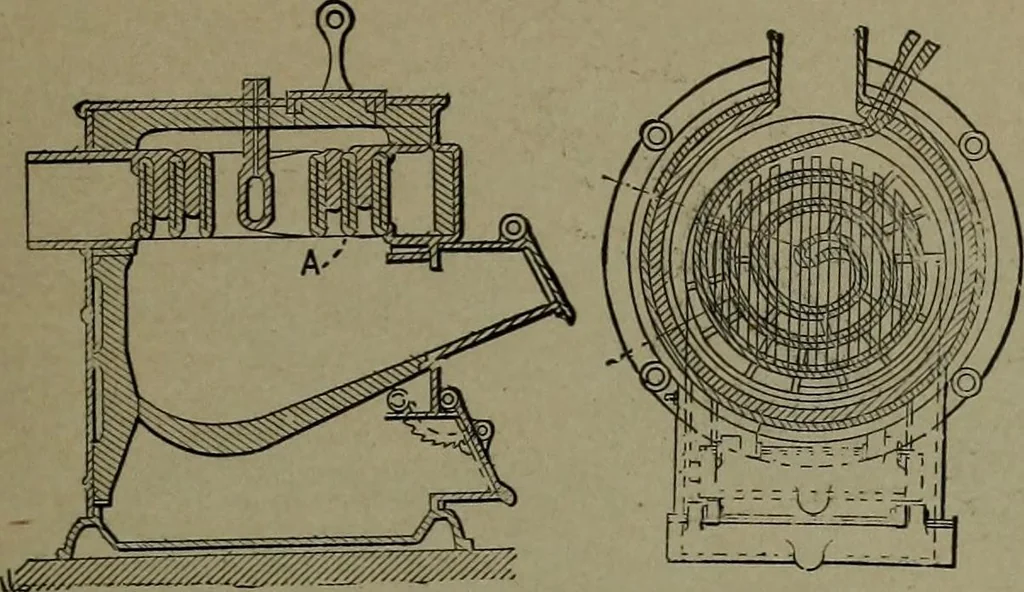

CAHALL VERTICAL WATER TUBEBOILER.—A water drum at the bottomforms the lower head for the tubes. An an-nular drum at the top forms the upper head,through which the smoke passes. The fur-nace and combustion chamber are outside, asis also the circulating pipe, as shown in thecut. 198. VERTICAL WATER… … 199-200. BOILER OFTHE SERPOLLET TRICYCLE—The steamgenerating surface is madeof iron pipe, flattened andcorrugated, then coiledinto a volute form with theinner end turned up, and the outer end to project through the furnace shell. The cuts show a vertical section and horizontal plan.
