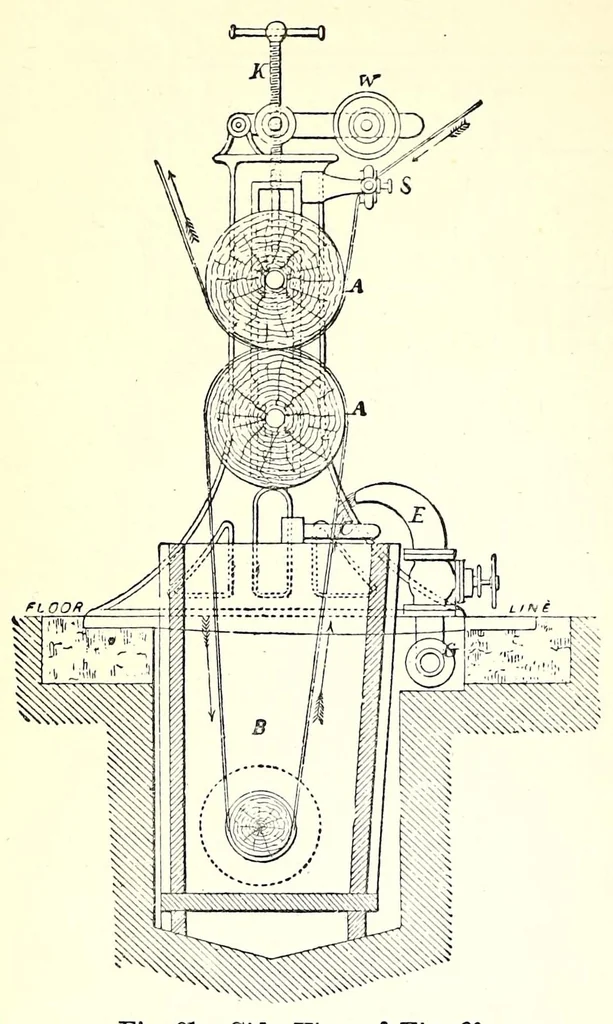

264 DYEING OF TEXTILE FABRICS. [CLap. XII. squeezing rollers and down beneath a roller r, fixed in the lower part of the washing trough ; C are guide-pegs to keep the several strands separated ; g is the water- main ; E the … Fig. 61.— Side View of Fig. 60. exit at the centre. Fisf. 62 re- presents another washing machine in which the pieces also travel spirally between a jmir of squeezing rollers. The water trough in this case is shallow and provided with two rollers — a square one A, immediately l>elow the squeezing…
