Electrical instruments and testing; how to use the voltmeter, ohmmeter, ammeter, potentiometer, galvanometer, the Wheatstone bridge, and standard portable testing sets (1907)
Schneider, Norman H. (Norman Hugh), Hargrave, Jesse · New York, Spon & Chamberlain; [etc., etc.] · leaf 41

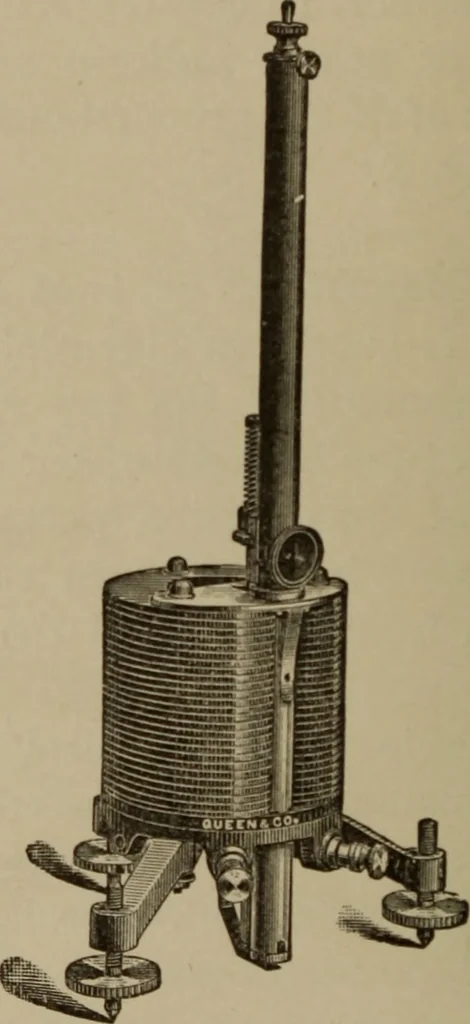

ments are propor-tional to the current. The moving system is either dead beat or bal-listic. The ballistic type is adapted for the measure-ment of currents of short duration. The currenthas ceased before the deflection is complete. But 18 ELECTRICAL INSTRUMENTS. the impetus received by the coil… … Fig. 11. meter is entirely enclosed in a cylindrical case; themirror deflections being observed through a win-dow in front. A removable bracket carries a reading telescopeand scale so proportioned that it gives the same GALVANOMETERS. 19 effect as a standard millimeter scale at a distanceof one…
Electric testing · Electric apparatus and appliances
