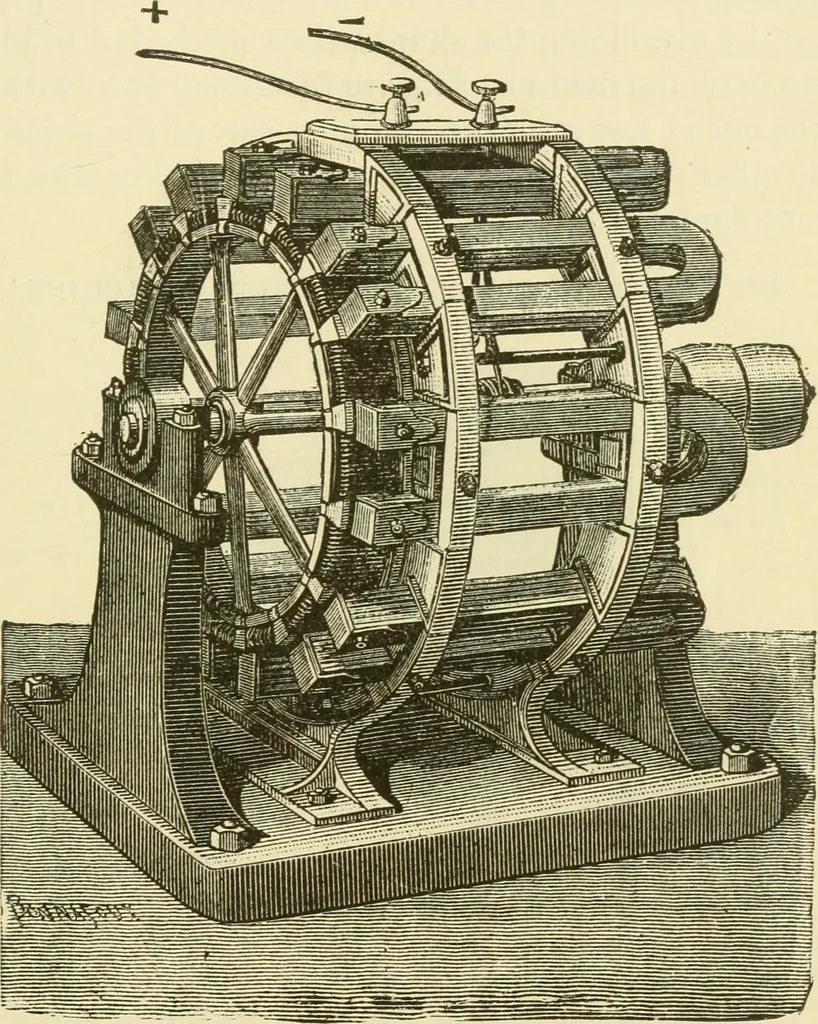

y the armature A traversesthe two field magnets or inductors I and I, at the same time thatit traverses and feeds the arc which forms a part of the circuit. AT.TENEOK S DBUM ARMATURE MACHINE. 571 Sir Charles Wheatstone, in his notable communication to theRoyal Society^ of Febrnary 14, 1867, also… … Fig. 370. connection really severs the current into two parallel circuits, asshown in fig. 369, one portion passing at once out to the electriclight, and the other flowing around the bar-magnets and backagain to the machine. If this arrangement is applied to a ma-chine wound for a continuous…
