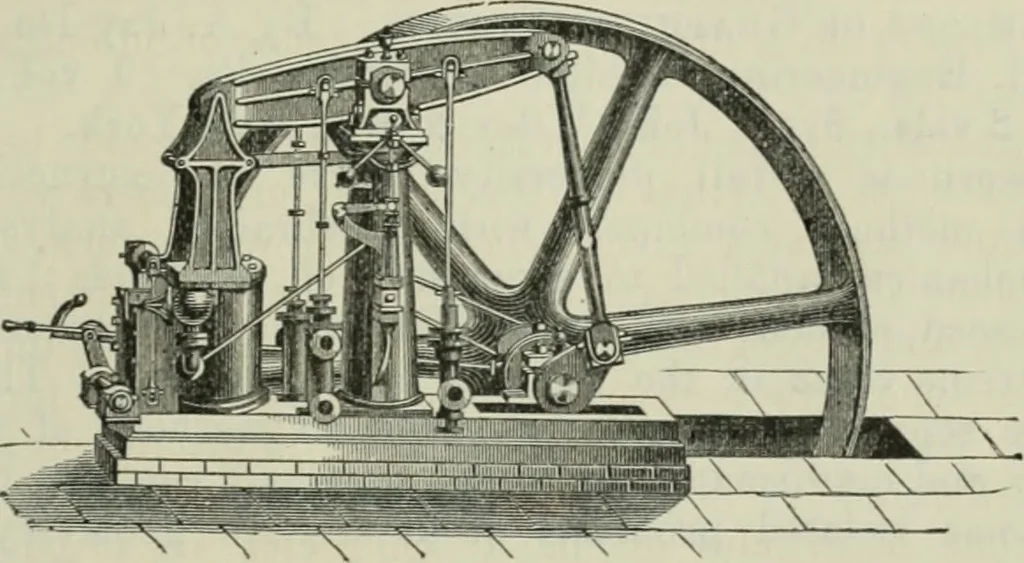

Fig. 1. Figure 1 shows an outline sketch of an engine machine directly Remarks on Pseudo Perspective. 15 from a working drawing to scale. This sketch is such as is requiredby the engraver on the block of wood before engraving and shading. … Figure 2 shows a finished woodcut from the same sketch, and canbe pronounced satisfactory from either the pictorial or mechanicalstandpoint. The sketch Fig. 1 was made in less than 2J hours time from aworking drawing, which showed a front elevation, two end views, anda plan, all drawn to the scale…
