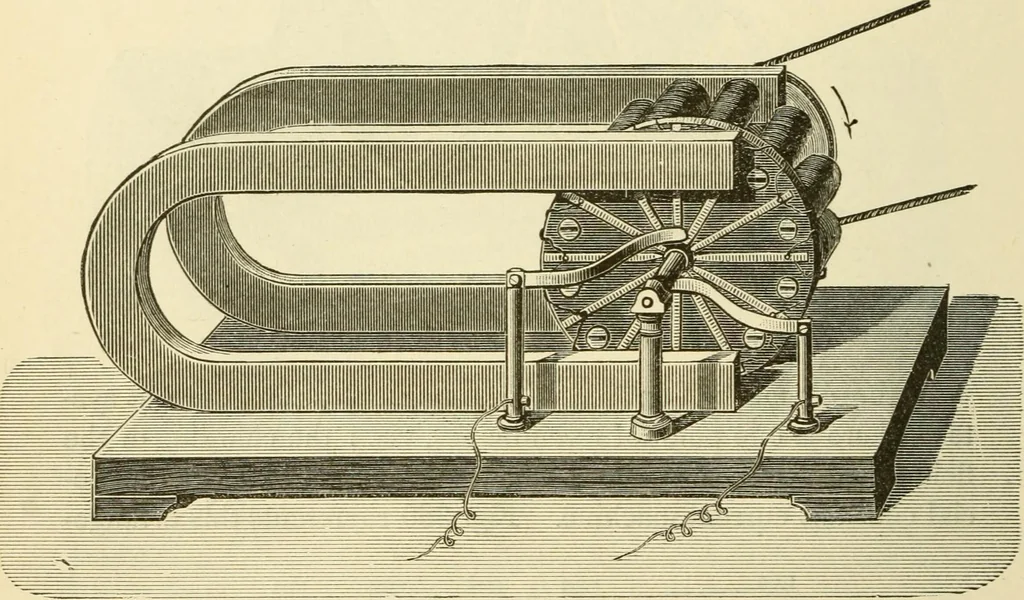

URRENT MACHINE. Fig. 381 represents tlie Niaudet machine. It lias a polararmature,—the rotating coils being wound upon radial bars ofiron, as upon the arms of electro-magnets—and a Gramme col-lector. The armature consists of twelve helices, wound with in-sulated copper wire, and attached by screws… … Fig. 381. being consequently S and IST respectively. If the two upj^erpoles were both N, and the lower both S, the induction in eachhalf of every core would neutralize the other half, and no cur-rent could be obtained, while by arranging them in this mannerthe inductive effect of each horseshoe…
