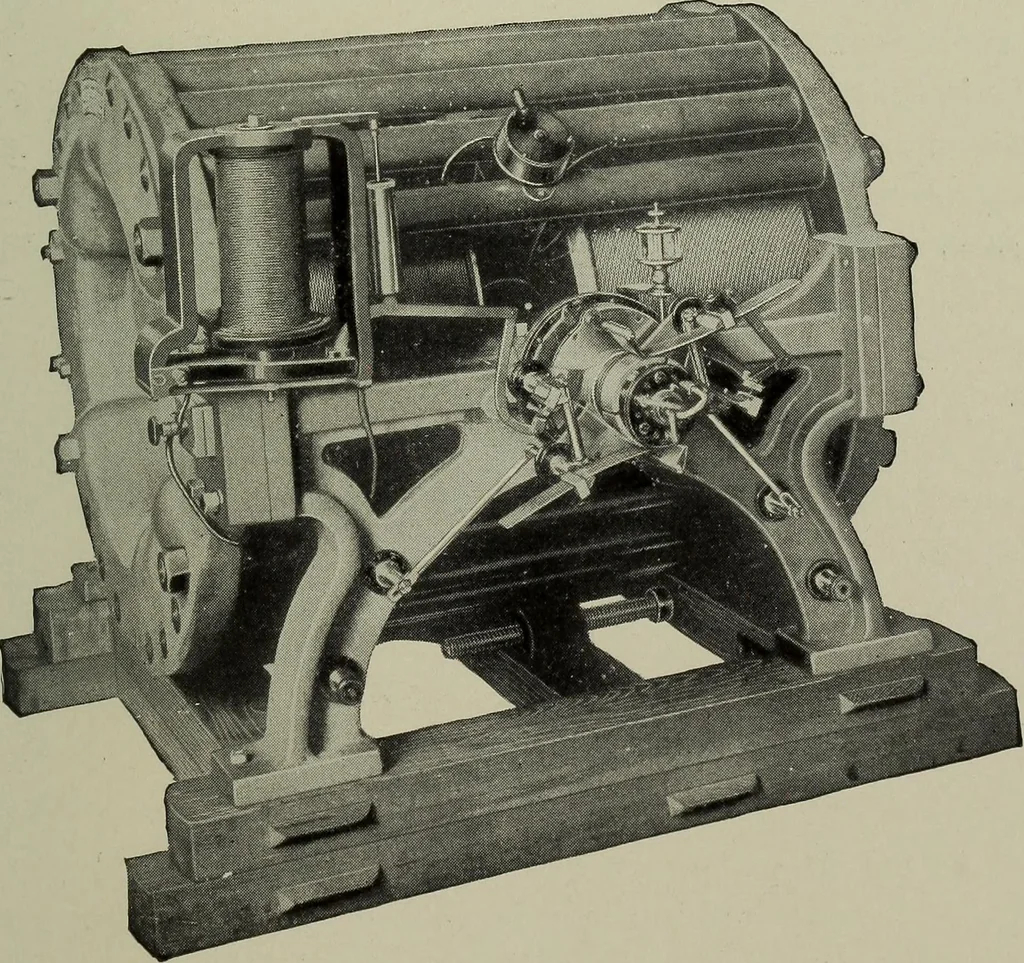

up-shaped end, is cast in one piece. The farthermostflange of each field core is bolted to a number of wrought-iron connecting-rods which hold the magnets in place, pro-tect the field windings, and take the place of the yoke of GENERATORS. 20I Other machines in completing the magnetic circuit.… … Fig. 122. armatures; these are more readily repaired or rewound.The winding of either form of armature is peculiar in thatonly three coils are employed, set with an angular displace-ment from one another of 120 degrees. The inner endsof the three coils are joined to each other, and are not…
