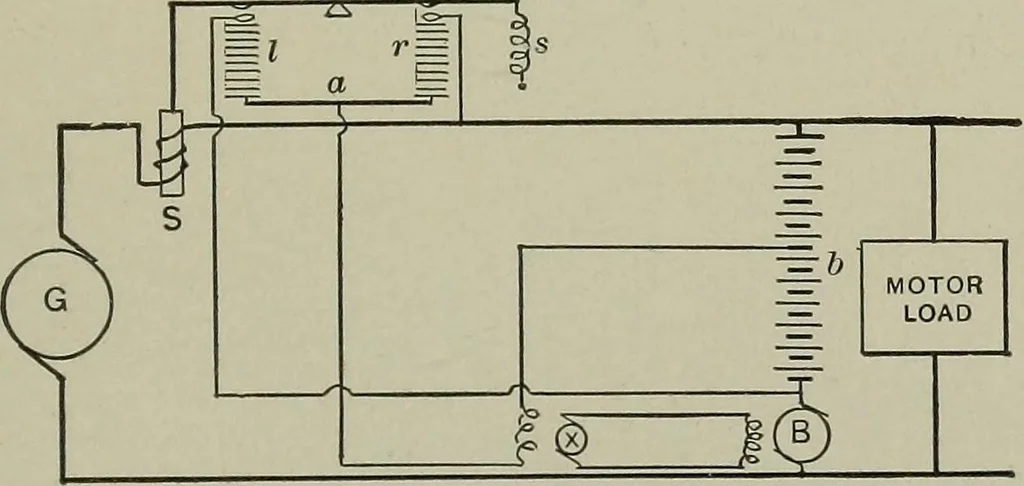

is zero, and the battery neither charges nor dis-charges. With heavy load E^ > E, Eb is added to E^, andthe battery discharges. With light load, E^<E, Eb is re-versed and is opposed to E^, and the battery charges.This system is sometimes called the counter E.M.F. systembecause the exciter… … Fig. 186. connections are as indicated in Fig. 186. Two piles ofcarbon plates / and r have variable resistances, which arereduced under pressure, and whose magnitudes are con-trolled by the combined action of the solenoid 5 and thespring s. The resistance Ri is reduced and R^ increasedupon increase…
