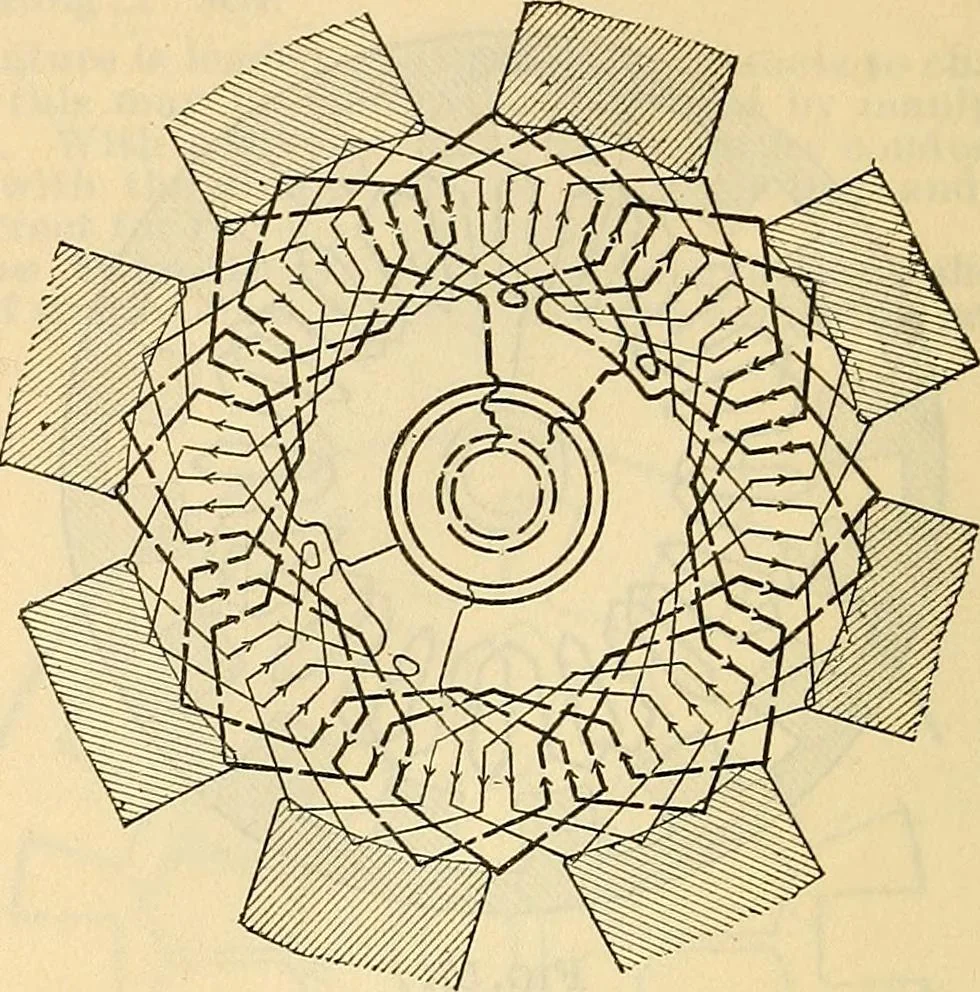

Fig. 59 is a diagram of a bar winding for a quarter-phase machine, withfour conductors per pole per phase.Three-phase Windings. — Fig. 60 is a diagram of a three-phase 262 DYNAMOS. winding connected in Y, in which one end of each of the three windingsis connected to a common terminal, the other… … Fig. 61 is a sample of a three-phase delta winding, in which all the con-ductors on the armature are connected in series, a lead being taken off to acollector ring at every third of the total length.
