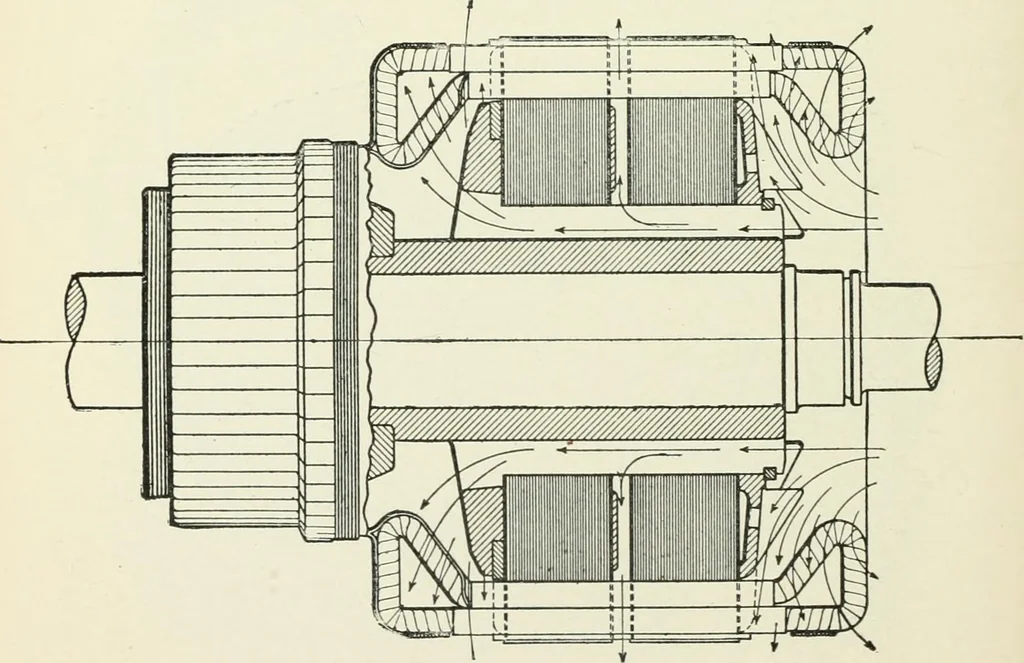

IGlA Fiij. 35. the armature and all field windings removed. One of the lami-nated structures which constitutes a combined field magnet coreand pole piece is shown in Fig. 32. These pole pieces are setinto the mould and cast-welded in the field magnet yoke. An … Fig. 36. THE DYNAMO AND THE TRANSFORMER. 55 enlarged area of pole face is obtained by the use of an open frameof cast iron shown in Fig. 32, which is called the pole shoe. Thispole shoe is put in place and fixed by bolts after the field coilshave been slipped into position on the projecting field…
