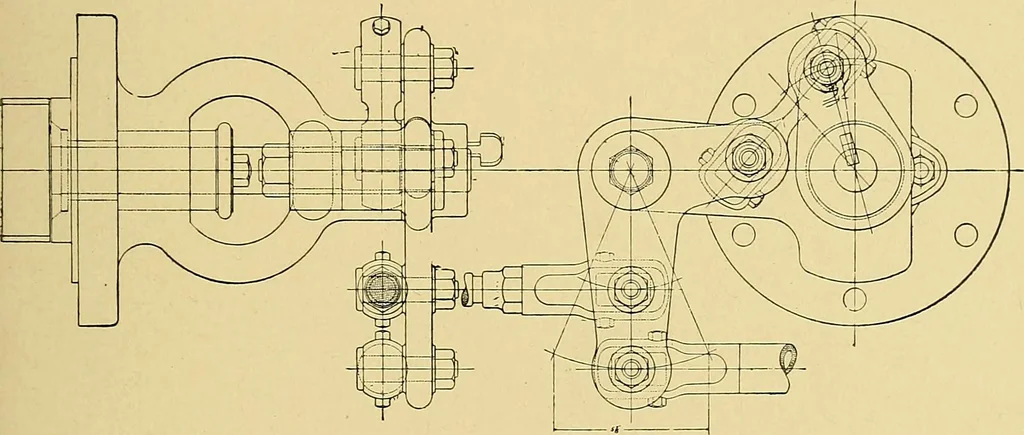

aging position. At thelatter part of the movement of the rocker D to the left, as the toe C2)asses under the latch A, the latter is raised by the toe sufficiently to clearthe same and the latch then drops by gravity in front of the toe to theengaging position, as shown in Fig. 150. On the exhaust… … FIG. 152. lever through a link, thus allowing the valve to pause at the end of a stroke.The valves of the engines are set as follows: Before setting the valves, see that the lengths of all valve-gear rods andclutch rods are so adjusted that all the valve rockers and intermediaterockers are plumb.…
