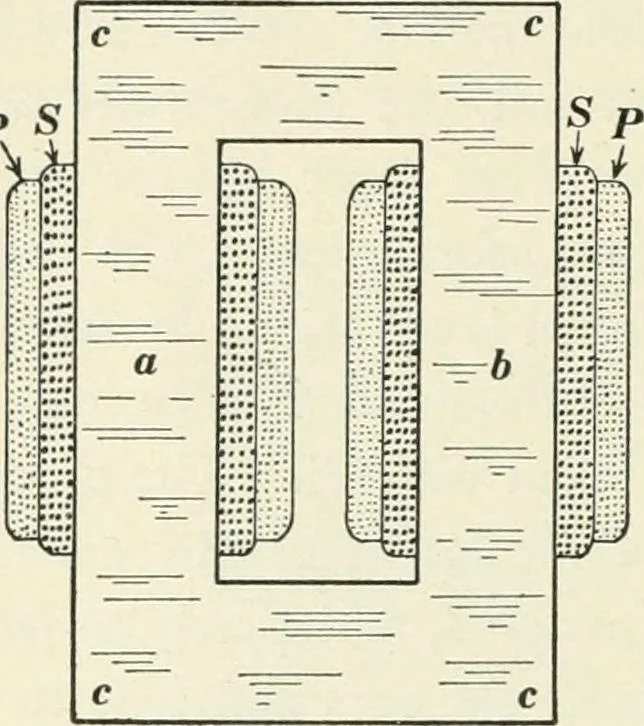

ore of laminated ironis called a core-type transfortner. Figure 53 is a sectional view ofa core-type transformer. The coarse wire winding 6 is wound intwo parts on the two limbs a and b of the laminated core, and thesetwo parts may be connected in series or parallel with each other. 68 DYNAMOS AND… … Fig. 53. c « c o o a b o o ^ c Fig. 54. The laminated core <r?/;, which is shown by itself in Fig. 54, isbuilt up of thin rectangular strips of soft sheet steel which interleavewith each other at the corners, thus giving a good magnetic cir-
