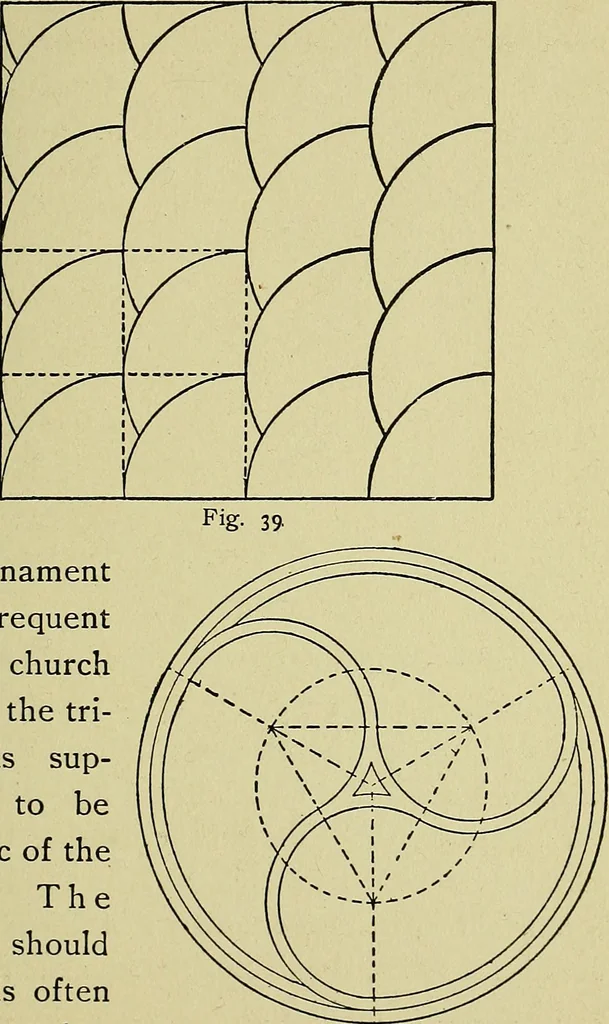

re shown by the dottedlines. The three examples shown in Figs. 40, 41, and42 are a little more difficult to draw than theprevious ones. Fig. 40 may be termed a trefoilornament, as the central divisions are drawn ARCHITECTURAL DRAWING SELF TAUGHT 59 from the three points of an equilateral… … Fig. 40. 60 ARCHITECTURAL DRAWING SELF TAUGHT he can draw or describe it from memoryalone. Fig. 41 is simple enough when the principle isunderstood. The circles inside are drawn from
