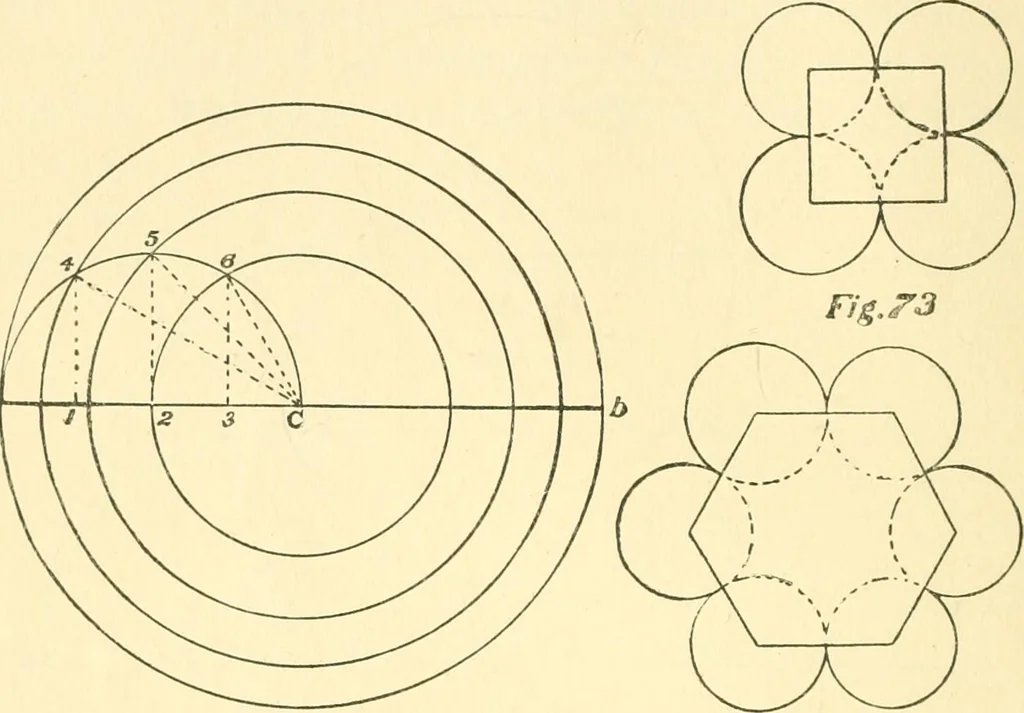

the centres for the semi-circles, and from any of these points to the given circle isthe radius, as 4 d. 68—To Divide a Circle into Concentric RingsHaving Equal Areas.—Divide the radius, a c, Fig. 72,into as many parts as areas required, as i, 2, 3, etc. With^ ^ as a diameter draw the semi-circle ^… … Fjg.rs rig,r4 69—To Draw any Number of Tangential Arcs ofCircles Having a Given Diameter.—Draw a polygonof as many sides as arcs required (four and six). Witheach anofle as centre and half of one side as radius drawthe arcs, as shown in Figs, j^, and 74. 70—To Divide the Circumference of a Circle…
