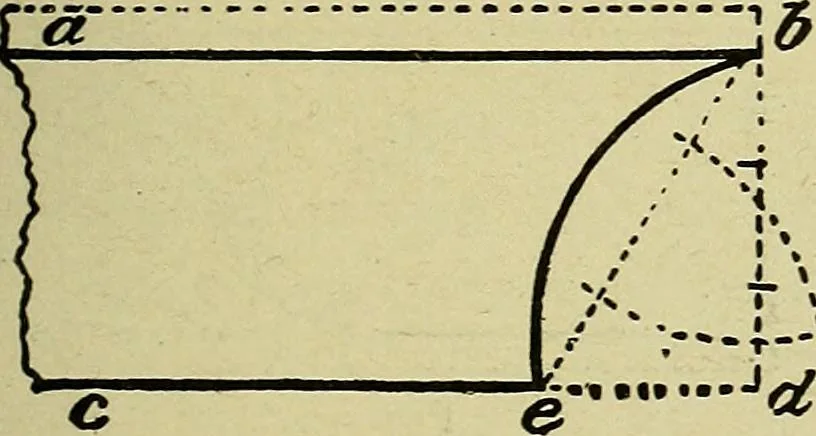

d draw linesfrom a, through thedivisions of k, h, and lines from d through the divisions of /, h, andtheir intersections are points in the curve. In Figs. 62 and 63 I show a cove or cavetto mould. To de-scribe it let ad,cd, Fig. 63, bethe lines at topand bottom.f\f From b, draw tod, perpendicularto… … Fig. 63. 74 ARCHITECTURAL DRAWING SELF TAUGHT
