Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 567

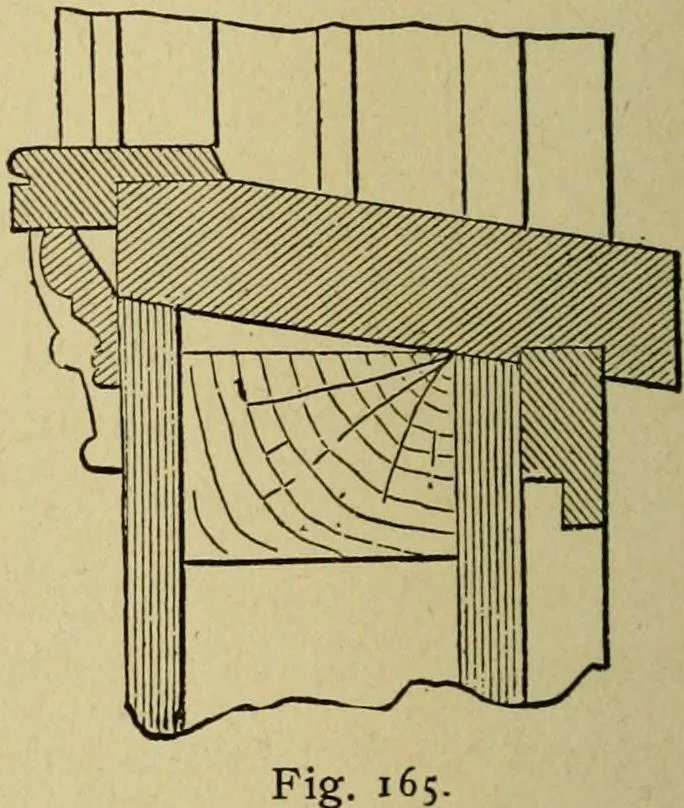

pared, in which alarge number ofconstructive de-tails are presented.I would advise thatthe student copyeach item as pre-sented, makingeach one twice the size as shown on the plates;this will make instruc-tive practice and willsoon fit the youngdraftsman for work ofa higher and more elab-orate kind.… … ARCHITECTURAL DRAWING SELF TAUGHT 163 Each item, too, has a constructive value^ asall are drawn from examples of actual work,and will, therefore, convey in some measure atrue knowledge of construction, without whichthe work of the mechanical draftsman has butlittle value. Straight Line.
Architecture · Architectural drawing
