Builders' architectural drawing self-taught : containing descriptions of drawing instruments and accessories, with rules for using them, and hints as to their care and management ... (1917)
Hodgson, Fred. T. (Frederick Thomas), 1836-1919, Frederick J. Drake & Co · Chicago, F. J. Drake · leaf 185

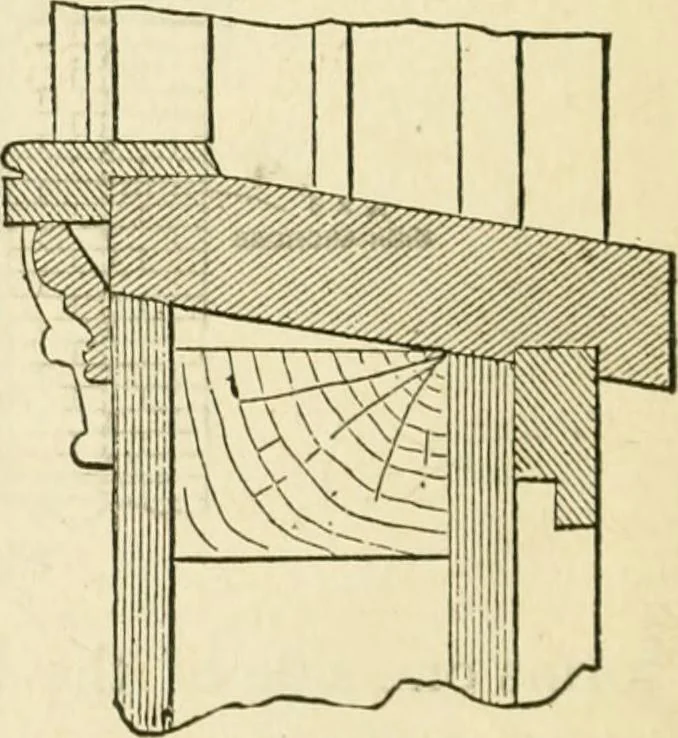

ared, In which alarge number ofconstructive de-tails are presented.I would advise thatthe student copyeach item as pre-sented, makingeach one twice the size as shown on the plates;this will make instruc-tive practice and willsoon fit the young-draftsman for work ofa higher and more elab-orate kind.… … Fig. 165. ARCHITECTURAL DRAWING SELF TAUGHT 163 Each item, too, has a constructive value, asall are drawn from examples of actual work,and will, therefore, convey in some measure atrue knowledge of construction, without whichthe work of the mechanical draftsman has butlittle value. Str^ght Line.…
Architectural drawing · Architecture, Domestic
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
