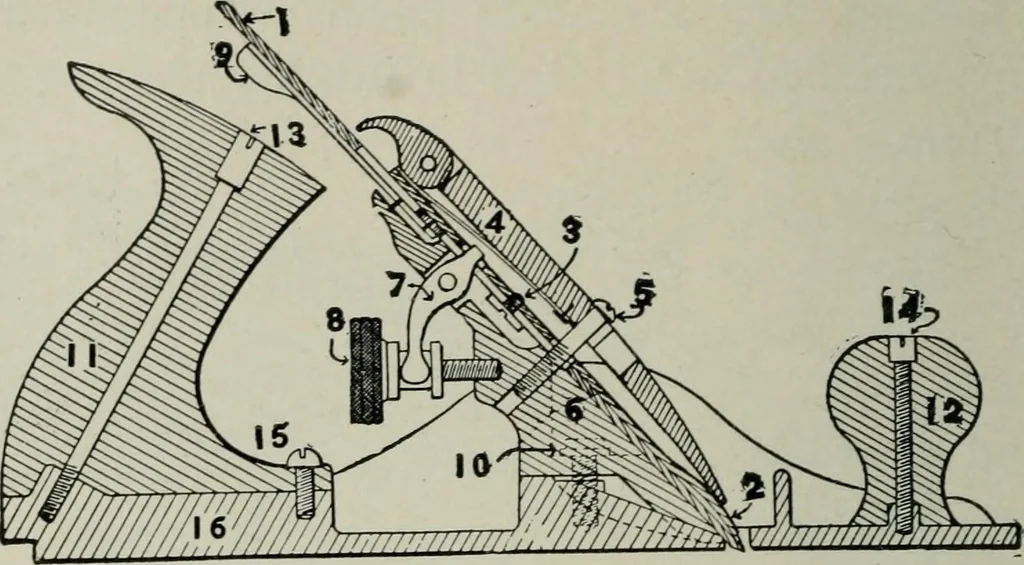

Fig. 39. — Wood bottom plane. 50 EDUCATIONAL WOODWORKING … Sectional elevation of Bailey iron plane. List of Parts of Bai T.EY Planes. 1. Plane iron. 10. Frog screw. 2. Plane iron cap. 11. Handle. 3. Plane iron screw. 12. Knob. 4. Cap. 13. Handle bolt and nut.* 5. Cap screw. 14. Knob bolt and nut. 6. Frog. 15. Handle screw. 7. Y adjustment. 16. Bottom…Manual training · Woodwork
