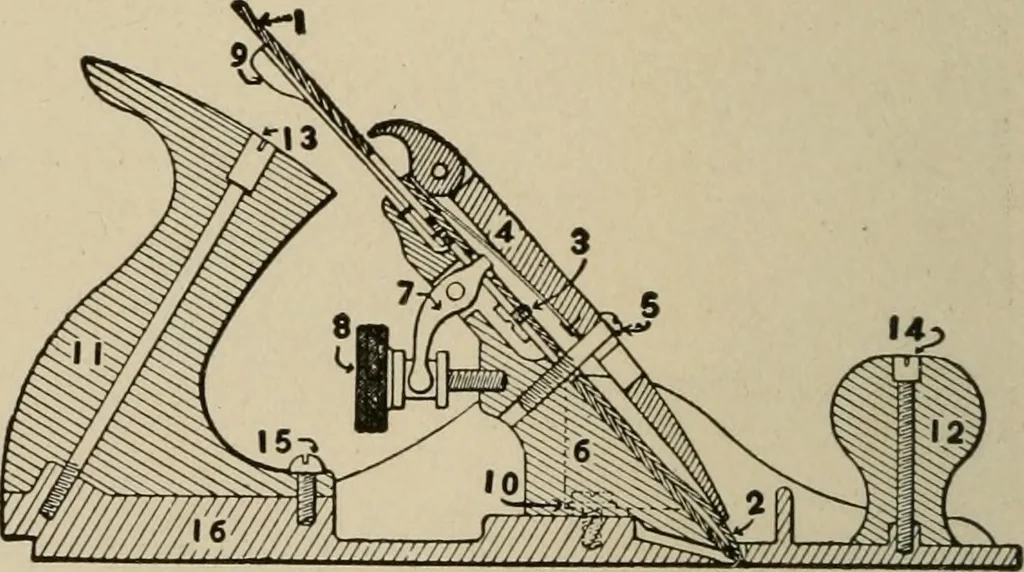

1 Plane Iron. 2 Plane Iron Cap. 3 Plane Iron Screw. 4 Cap. 5 Cap Screw 6 Frog. 7 Y Adjustment. 8 Brass Adjusting- Nut. 9 Lateral Adjustment 10 Frog Screw. 11 Handle. 12 Knob. 13 Handle Bolt and Nut 14 Knob Bolt and Nut. 15 Handle Screw. 16 Bottom. … Fig. 10—Section of Plane WOODWORK FOR THE GRADES 21 moves the plane-bit, so it will cut more nearly square across ormore at one side or the other as desired. The milled thumb-nut 8 is used to move the bit endwiseso it will project more beyond the bottom or sole of the plane,or to withdraw it so it…
