Educational woodworking for home and school (1908)
Park, Joseph C · New York, MacMillan · leaf 69

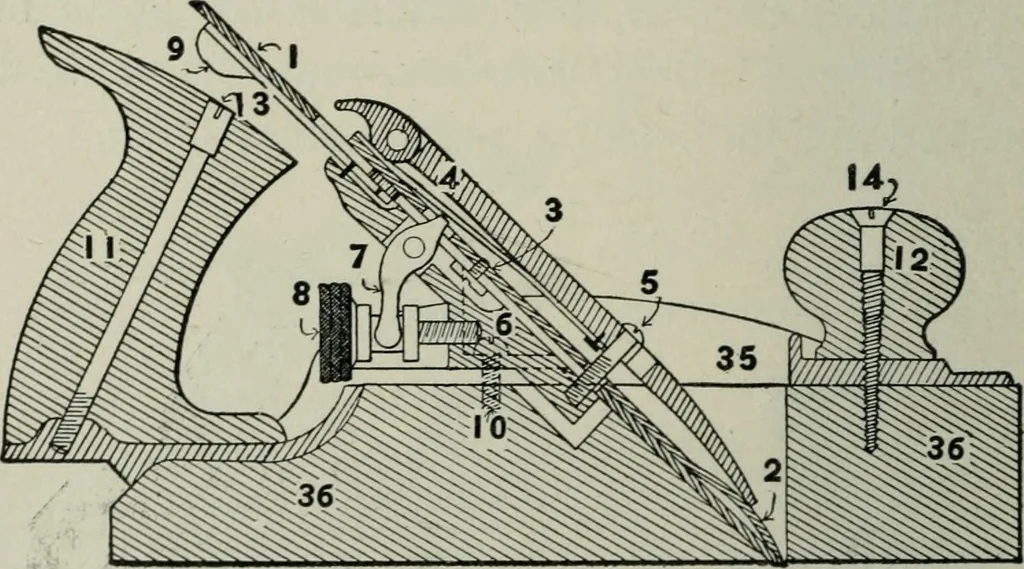

Sectional elevation of Bailey iron plane. List of Parts of Bai T.EY Planes. 1. Plane iron. 10. Frog screw. 2. Plane iron cap. 11. Handle. 3. Plane iron screw. 12. Knob. 4. Cap. 13. Handle bolt and nut.* 5. Cap screw. 14. Knob bolt and nut. 6. Frog. 15. Handle screw. 7. Y adjustment. 16. Bottom… … Sectional elevation of Bailey wood plane.Fig. 40. FOR HOME AND SCHOOL 51 13 CD
