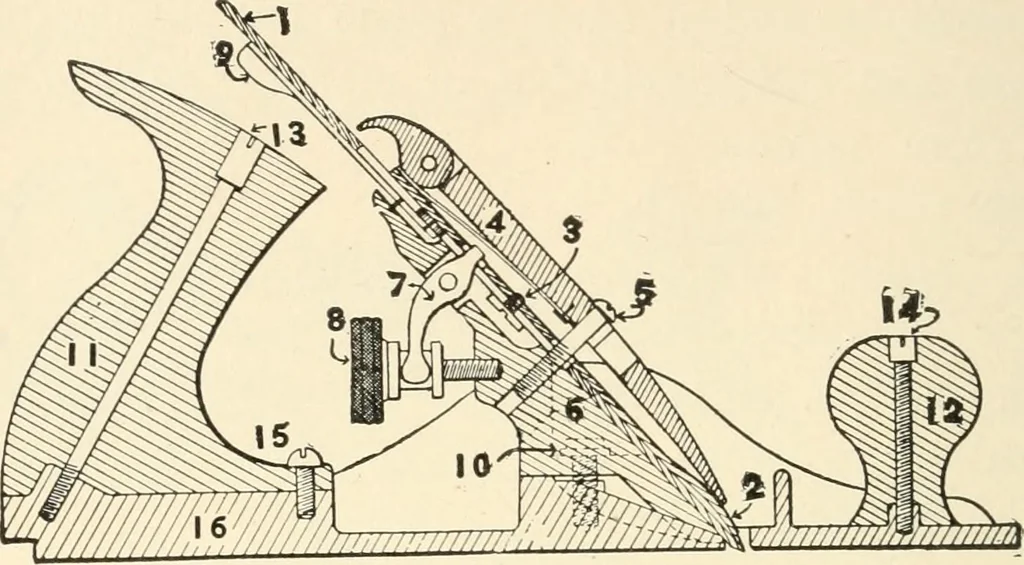

Fig. :;!). —Wood bottom plane. 50 EDUCATIONAL WOODWORKING … Sectional elevation of Bailey iron plane. List of Parts of Bailey Planes. 1. Plane iron. 2. Plane iron cap. 3. Plane iron screw. 4. Cap. 5. Cap screw. 6. Frog. 7. Y adjustment. 8. Brass adjusting nut. 9. Lateral adjustment. 10. Frog screw. 11. Handle. 12. Knob. 13. Handle bolt and nut. 14. Knob…Woodwork (Manual training)
