Educational woodworking for home and school (1908)
Park, Joseph C · New York, MacMillan · leaf 85

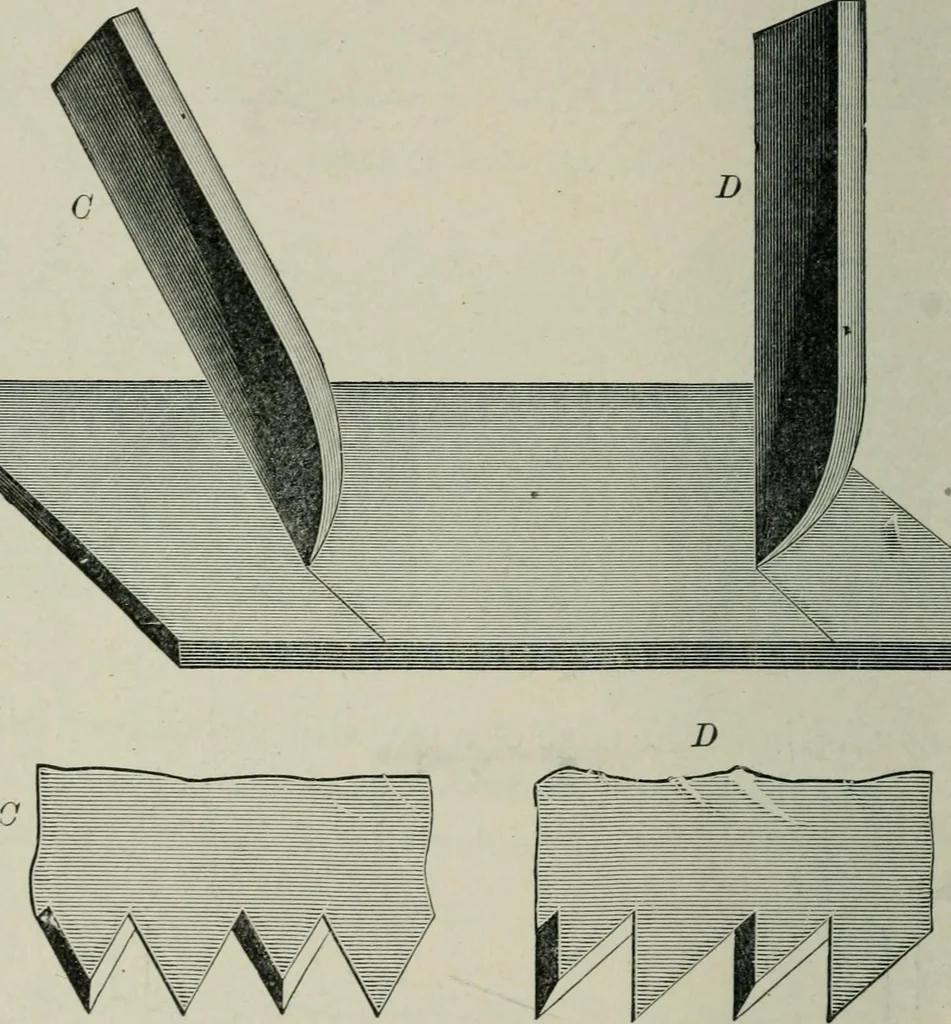

cted. A saw in good con- M IVN Fig. 56. 1 ) \1 ^ M Fig. 57. Fig. 58. Fig. 59. dition should leave the bottom of the kerf flat, like Fig.57, and not like Fig. 58. The cutting action of the teethis shown in Fig. 59. In making a knife line the blade 66 EDUCATIONAL WOODWORKING will cut more smoothly if… … Fig. go. — Cutting action of saw teeth. C, cross-cut saw; D, rip saw. tooth. Fig. 60 illustrates the principle on which sawteeth are constructed. ^ 35. Back Saw. — The back saw is a cross-cut saw withvery fine teeth. It is intended for fine and accuratesawing. The saw blade is very thin and this is…
Manual training · Woodwork
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
