Educational woodworking for home and school (1908)
Park, Joseph C. (Joseph Charles), b. 1872 · New York, The Macmillan company · leaf 87

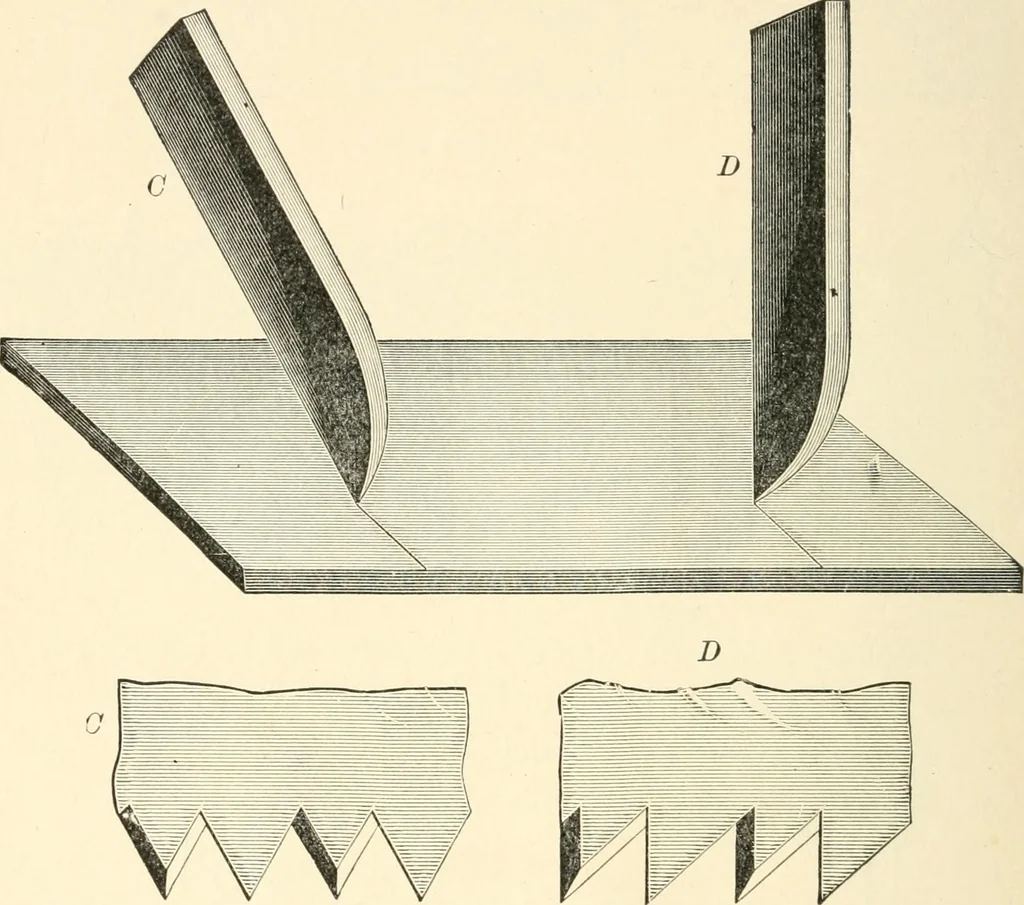

M Fig. 56. Fig. 57. Fig. 58. Fig. 59. clition should leave the bottom of the kerf flat, like Fig.57, and not like Fig. 58. The cutting action of the teethis shown in Fig. 59. In making a knife line the blade 66 EDUCATIONAL WOODWORKING will cut more smoothly if it is inclined forward a littleinstead… … Fig. 60. — Cutting action of saw teeth. C, cross-cut saw; D, rip saw. tooth. Fig. 60 illustrates the principle on which sawteeth are constructed. 35. Back Saw. — The back saw is a cross-cut saw withvery fine teeth. It is intended for fine and accuratesawing. The saw blade is very thin and this is…
Woodwork (Manual training)
