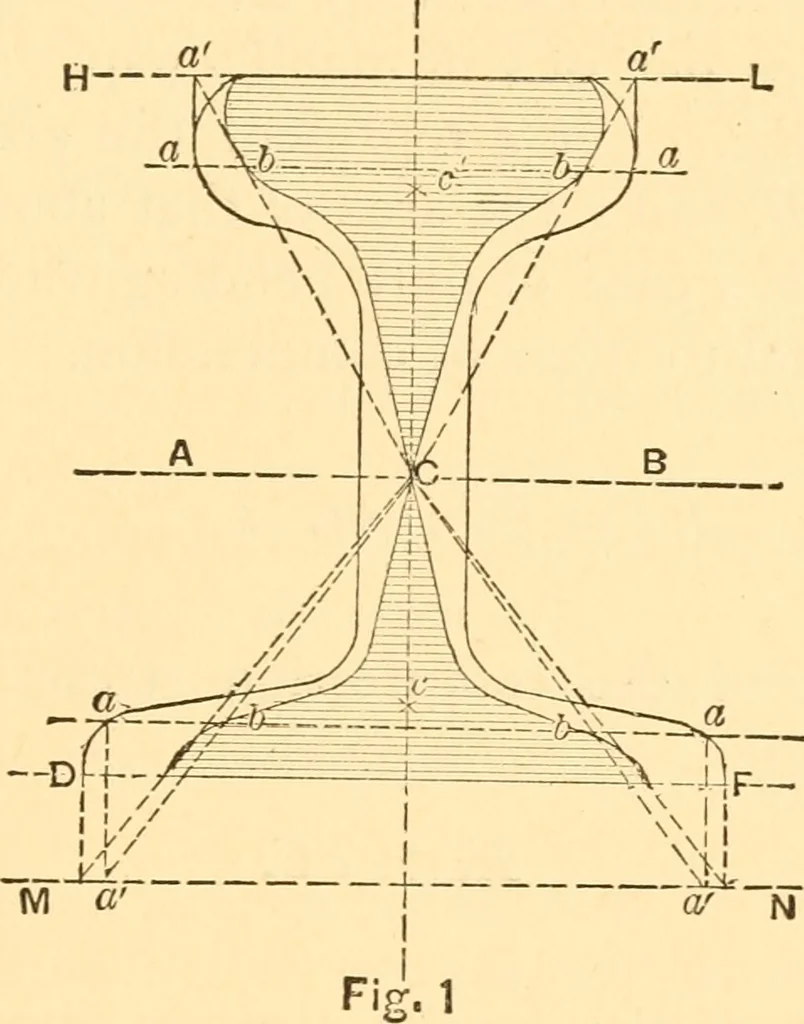

of gravity of the sectionbeing situated at C. The lines HL, AB and DF are parallel.As is known by the common theory of flexure, the neutral axiswill pass through C. Art. 26.] GRAPHICAL METHOD. 197 Let aa be any line on either side oi AB, then draw the linesaa normal to AB, having made MN and UK… … side of Cy be similarly treated. All the intercepts found in thismanner will compose the shaded figure. This operation, in reality, and only, determines an amountof stress with a uniform intensity identical with that developedin the layer of fibres farthest from the neutral axis, and equalto the…
