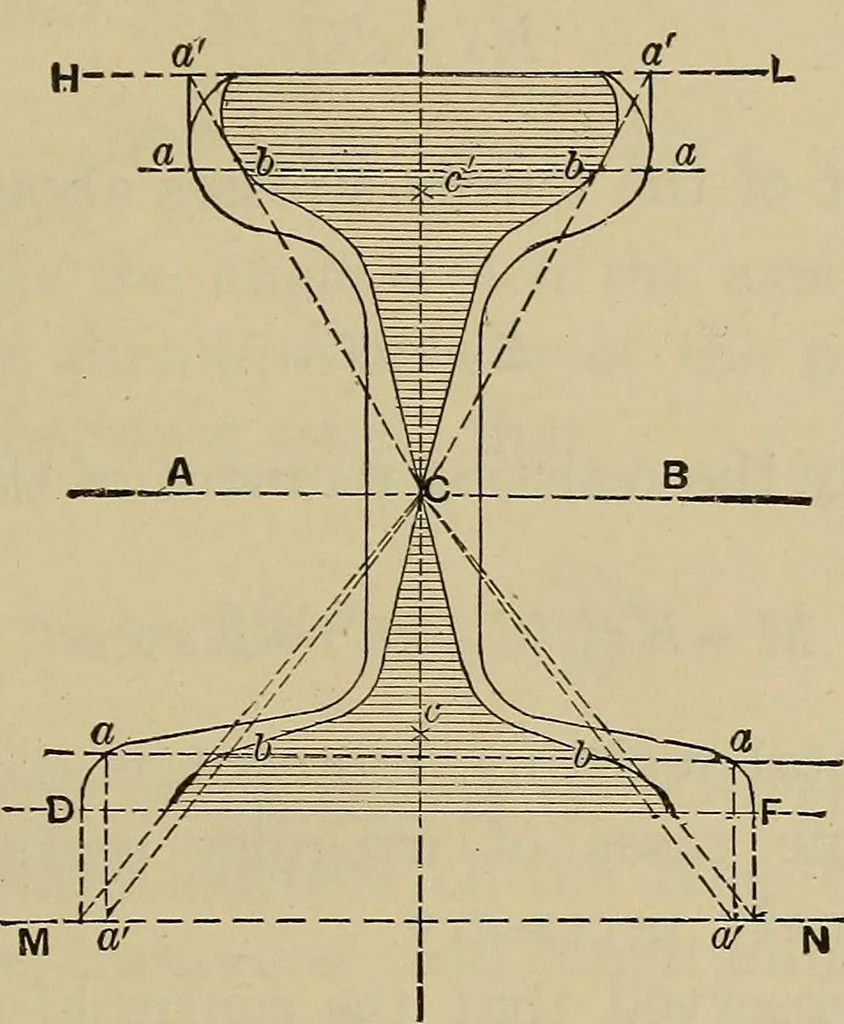

t. 33.] GRAPHICAL METHODS APPLIED TO BEAMS. 16: amount of stress with a uniform intensity identical withthat developed in the layer of fibres farthest from theneutral axis, and equal to the total bending stress existingin the section; this latter stress, of course, having a varia-ble intensity. HL… … Fig. I would then have had a value equal to that which existsat that distance from the neutral axis. Again, a differentintensity might have been chosen for the stress on eachside of AB. It is most convenient, however, to use thegreatest intensity in the section for the stress on both sidesof the…
