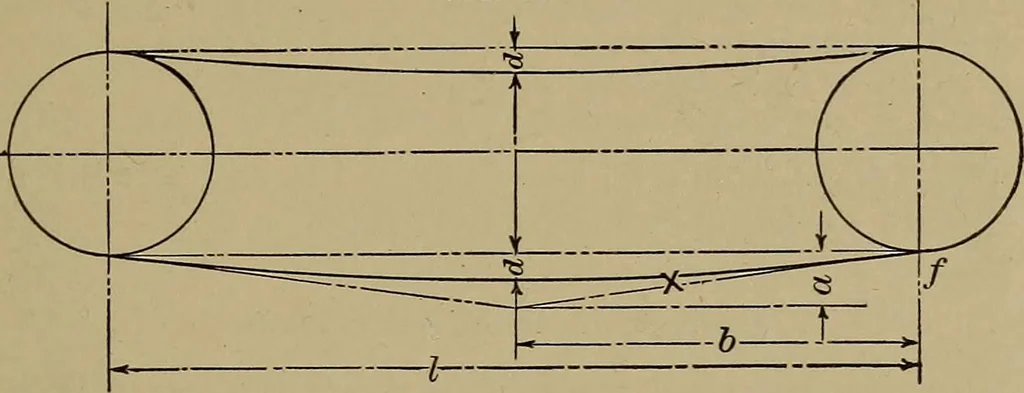

ed exceeding 6000feet per minute when wear and tear, loss due to centrifugal force, etc., areconsidered. t Sometimes a pulley is put on the free end of a line of shafting projectingthrough the wall and drawn by a wire rope outside the shop; this will do onlywhen a comparatively small amount of… … p_WK \/a* + P P = K*l (very nearly)a P = Force in pounds at f. W = Weight of rope in pounds from d to f, which is halfthe span. b = Half the span in feet. a = Twice the deflection in feet. Note.—(See Fig. 2.) If the length of the line a representsthe weight of the part of the rope from dtof, the…
