Electrical engineer's pocket-book: a hand-book of useful data for electricians and electrical engineers (1901)
Foster, Horatio A. (Horatio Alvah), 1858-1913 · New York, D. Van Nostrand co.; London, E.& F.N. Spon, ltd. · leaf 237

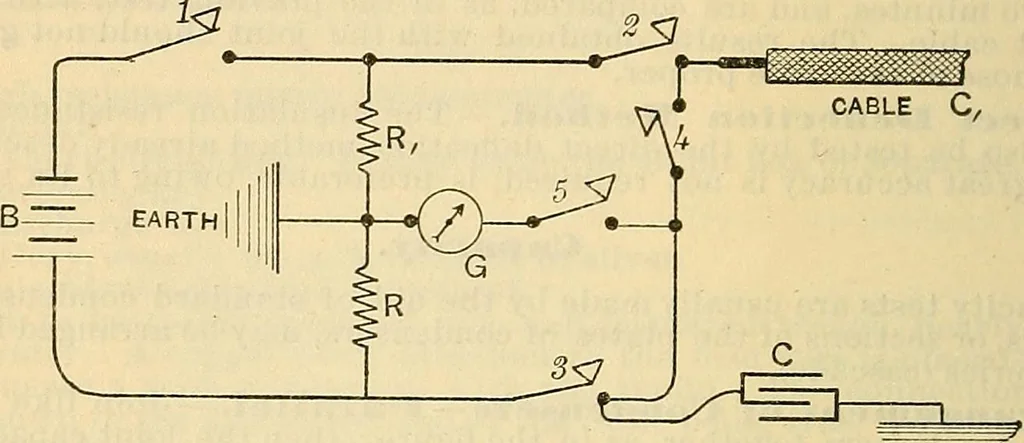

This is done bynoting the deflection </, due to the discbarge of the standard condenser aftera charge of, say, 10 seconds from a given E.M.F. Then discharge the othercondenser, wire, or cable through the galvanometer after 10 seconds charge,and note the deflection d. The capacity c of the latter… … Fig. , B = battery, say 10 chloride silver cells. B =. adjustable resistance. Bt— fixed resistance. G = galvanometer. C = standard condenser. 1, 2, 3, 4,5, keys. To test, close key 1, thus connecting the battery B, through the resist-ances R, By, to earth. Then V: V,:\ B : R,where Fand V, — the…
