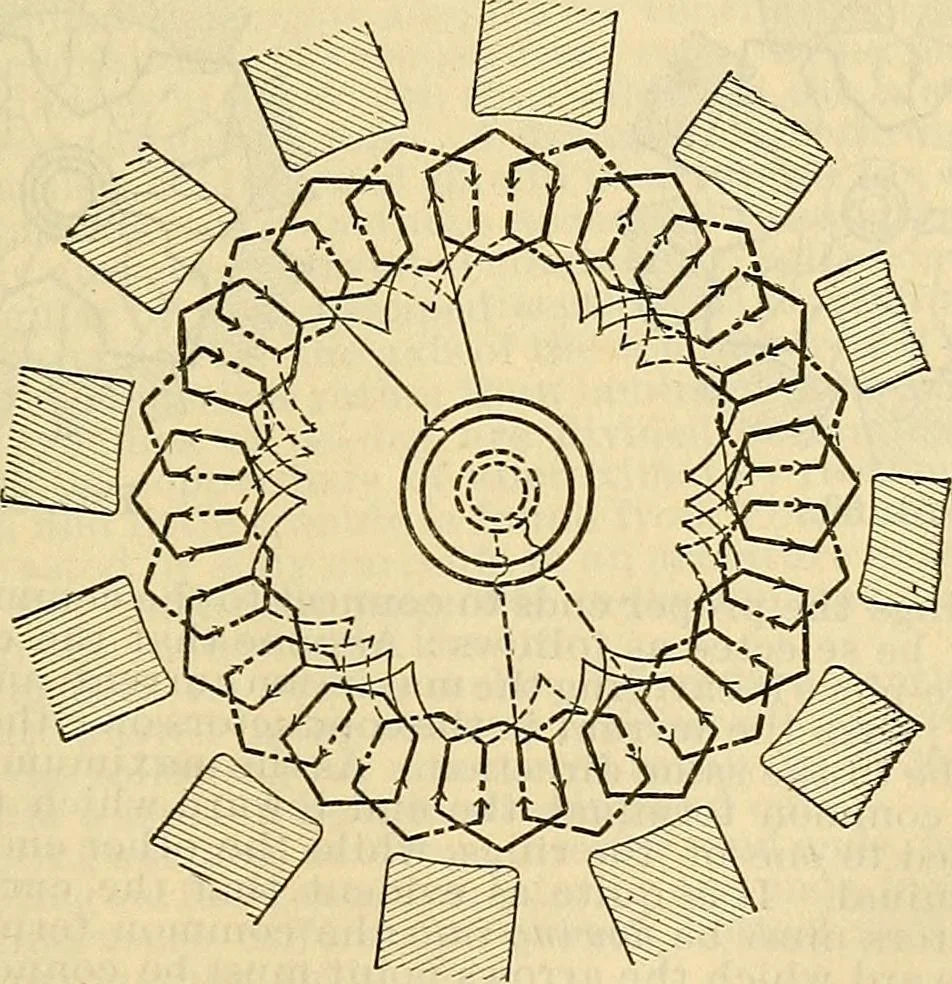

Two-phase Wineliiisrs. — The following diagram shows a good typeof winding for quarter-phase machines. It utilizes the winding space togood advantage, and is applicable to any number of coils per pole per phase. … Fig. 59 is a diagram of a bar winding for a quarter-phase machine, withfour conductors per pole per phase.Three-phase Windings. — Fig. 60 is a diagram of a three-phase 262 DYNAMOS. winding connected in Y, in which one end of each of the three windingsis connected to a common terminal, the other…
