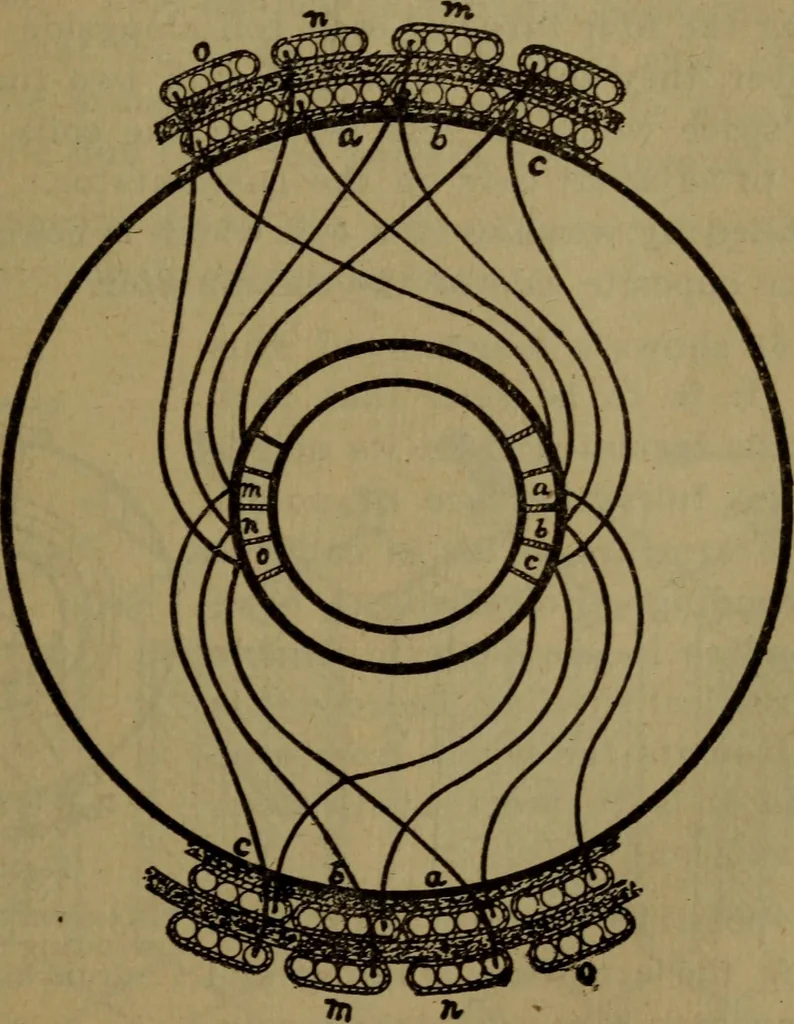

u-tator, it will be necessary to wind on a second layer 159 of wires over the firsit layer. Xow between anytwo ordinary coils in either la3^er of the armaturewinding there will be only the diffe.rence of poten-tial or voltag-e that exists between two adjacent barsin the commutator. When the last… … PigareeO Diagram of connection of bipolar armature,horizontal winding. A 160 full voltage which the armature is designed to carry. There-fore, while it is not necessary to insulate between adjacent ,coils in the same layer, it is necessary to carefully insulatebetween the first and last coils that…
