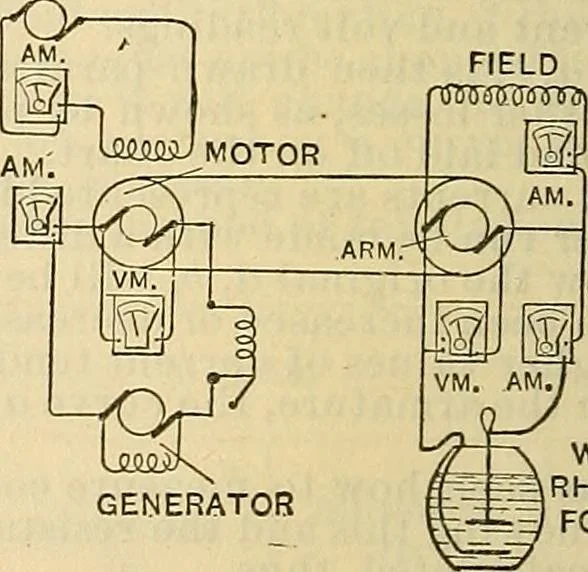

urrent flowing in the armature and in the fields, and alsoknowing the resistance of the same, the I2R losses in each may be calcu-lated, which, added to the output at the dynamo terminals, shows the totalelectrical energy generated in the ma-chine. If in ■= the 7 2R loss in the armature,/= the I2R… … GENERATOR WATER RHEOSTAT. J FOB LOAD The following diagram shows theconnections for this form of test. It must be obvious that a steam-en-gine, or other motive power that canbe accurately measured, may be usedin place of the electric motor ; butmeasurements of mechanical power Fig. 5. Connections…
