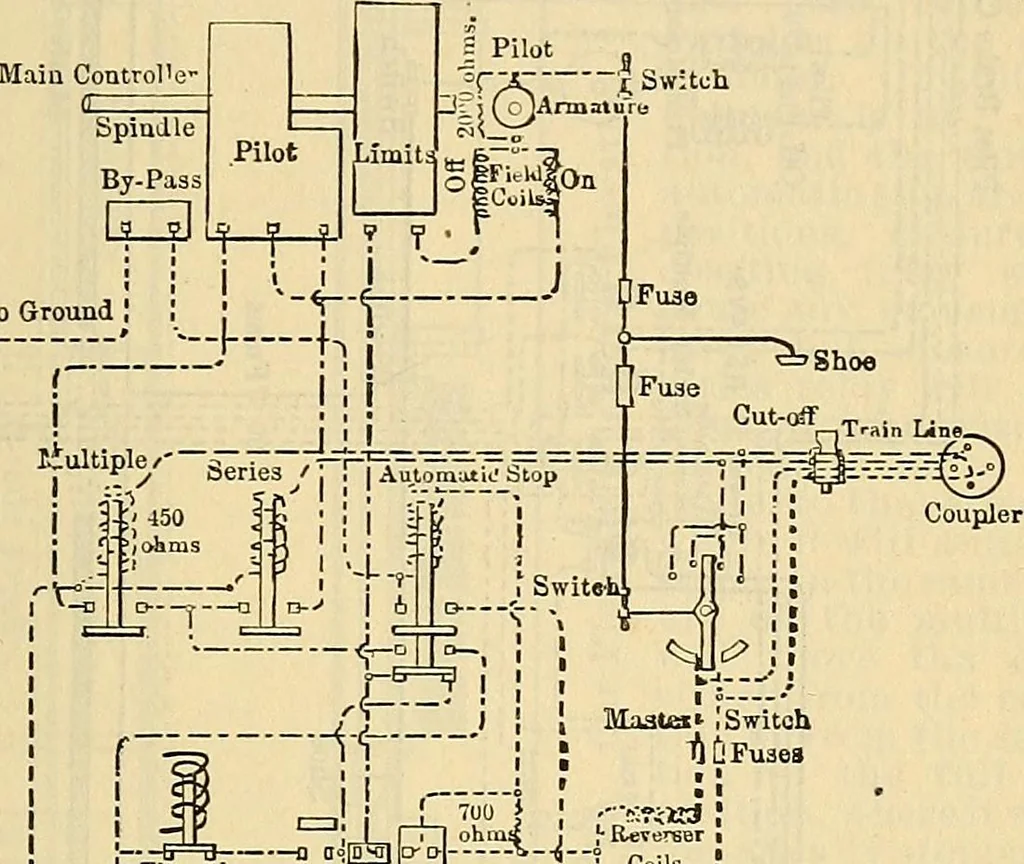

rst contactposi-tion, or through a contact made by the automatic, so that once opened itcannot be operated unless the controller is in a safe position for themotors. The cylinder of the main controller is driven with an intermittent motionby a pilot motor through a powerful locked spring, so that… … ft G Fuses a! i r~7u<n ; .-s?<Ki: ■ a a e!3^—-;M~* Coils CliD3 on Reve ^.iszsxisj |1400 |l000 Pilot So Brake* | 70 ohms.fo | Grouud J FlG. 47. Schematic Diagram, Control Circuits Only, Without Coast Relay. The pilot motor is governed by either four or five relays called, respec-tively, the…
