Electrical engineer's pocket-book: a hand-book of useful data for electricians and electrical engineers (1901)
Foster, Horatio A. (Horatio Alvah), 1858-1913 · New York, D. Van Nostrand co.; London, E.& F.N. Spon, ltd. · leaf 634

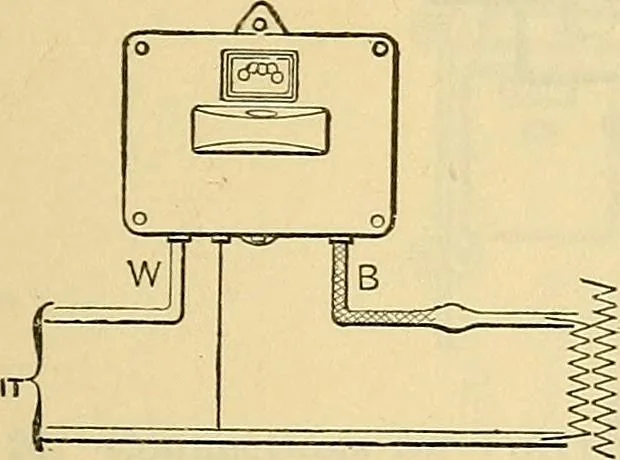

metered, and connect the heavy black terminal of the meter to the mainleading to the transformer or current generator, and connect the white ter-minal toward the lamp circuit or current consuming device. Connect thesmall shunt wire directly across the mains to the opposite side of the circuitso… … Figs. 19 and 20. Directions for Reading*. Kilo-watt hours are recorded directly on the dial without the use of a con-stant, unless otherwise marked on the case cover. The first right-handpointer on the dial indicates 1,000 Watt hours, or 1 K. W. H. for one com-plete revolution of the pointer, and…
