Electrical engineer's pocket-book: a hand-book of useful data for electricians and electrical engineers (1901)
Foster, Horatio A. (Horatio Alvah), 1858-1913 · New York, D. Van Nostrand co.; London, E.& F.N. Spon, ltd. · leaf 635

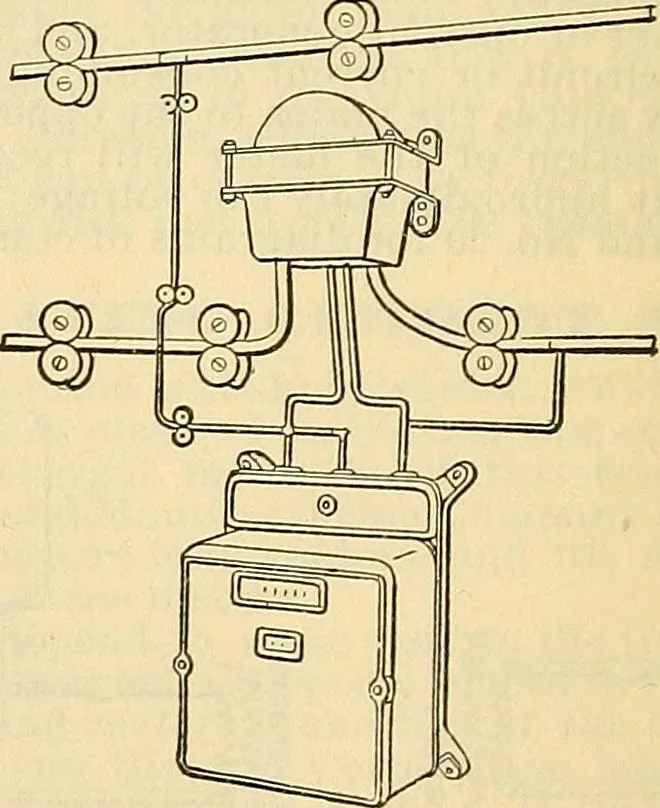

Fig. 21. Connections for Single-Phase Circuits ; Current not exceeding 100Amperes, Potential not exceeding 500 Volts. The illustration above shows the method of connecting a meter to a single- SKSSKr™*not exceedin§ io°~ and at a ^ … Fig. 22. Connections for Single-Phase Circuit; Current exceeding 100Amperes, Potential not exceeding 500 ^olts. The illustration herewith shows the method of connection to a single-P^lV^rnn ^J^? a ^rrent exceedi§ 100 amperes at a potential notexceeding 500 volts. In this case a series transformer…
Electrical engineering
