Electrical engineer's pocket-book: a hand-book of useful data for electricians and electrical engineers (1901)
Foster, Horatio A. (Horatio Alvah), 1858-1913 · New York, D. Van Nostrand co.; London, E.& F.N. Spon, ltd. · leaf 637

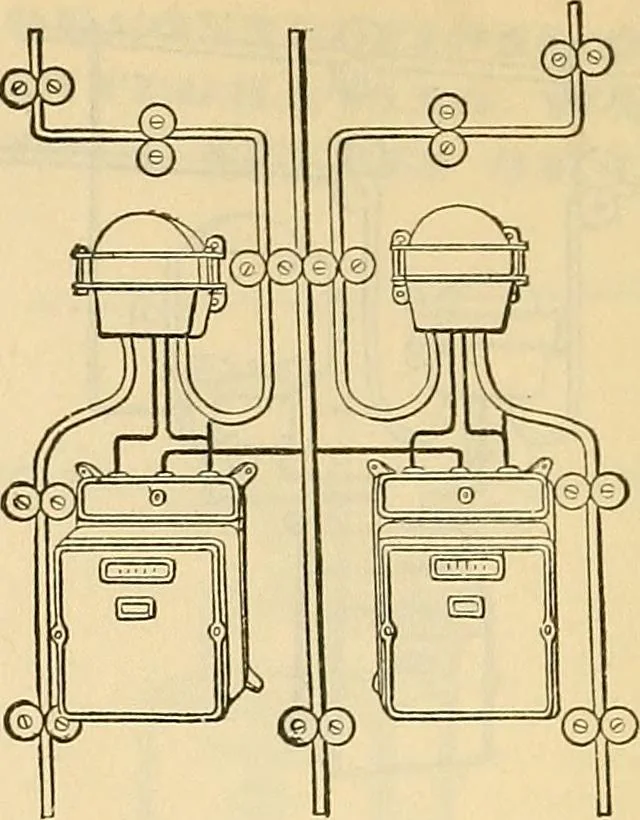

; Current not exceeding 100Amperes, Potential not exceeding 500 Volts. The illustration above shows the method of connecting two meters to athree-wire polyphase circuit, in which the current traversing each of the out-side wires does not exceed 100 amperes, while the potential between eitherof the… … Fig. 25. Connections for Polyphase Circuits ; Current exceeding 100Amperes, Potential not exceeding 500 Volts. The illustration herewith shows the method of connecting two of thesemeters to a three-wire polyphase circuit, where the current in each of theoutside wires exceeds 100 amperes, while the…
Electrical engineering
