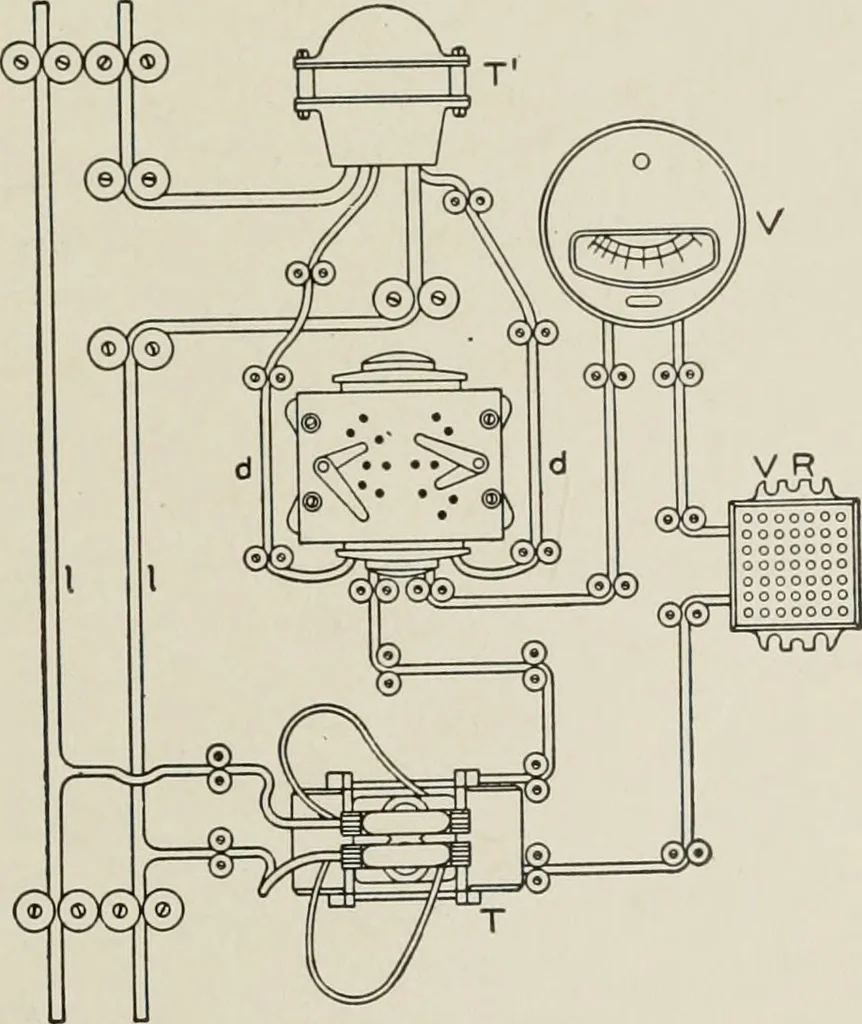

VR I W/VsA/V^ Fig. 398. Wiring Diagram for Voltmeter Compensator as■Used in Practice in High Voltage Circuits explained on page 58. The relation between Eo, E, IR, and XI \sshown in Fig. 396. T, Fig. 395, is a transformer which supplies tothe voltmeter V a voltage exactly in phase with Eo, and,… … Fig. 399. Diagram of Circuits and Apparatus inConnection with Westinghouse Compen-sated Voltmeter tenth as great. Let a- be a reactance one-tenth as great as A, andr a resistance one-tenth as great as R. Then the voltage between 469 452 ALTERNATING-CURRENT MACHINERY the points a and b consists of…
