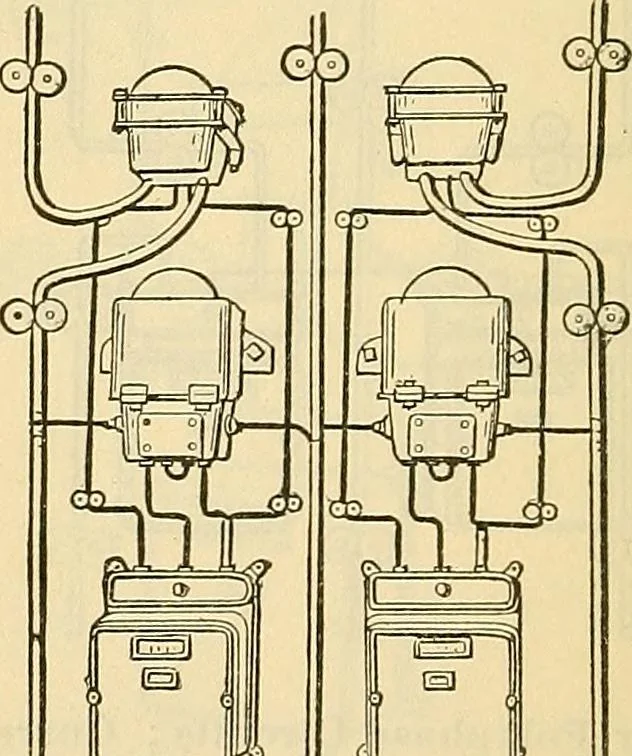

nt exceeding 100Amperes, Potential not exceeding 500 Volts. The illustration herewith shows the method of connecting two of thesemeters to a three-wire polyphase circuit, where the current in each of theoutside wires exceeds 100 amperes, while the potential between each of theoutside wires and the… … Fig. 26. Connections for Polyphase Circuit; Potential exceeding 500 Volts. The illustration shows the method of connecting two meters to a poly-phase three-wire system carrying currents at a potential exceeding 500 volts.It will be noted that both series transformers and shunt transformers areused.…
