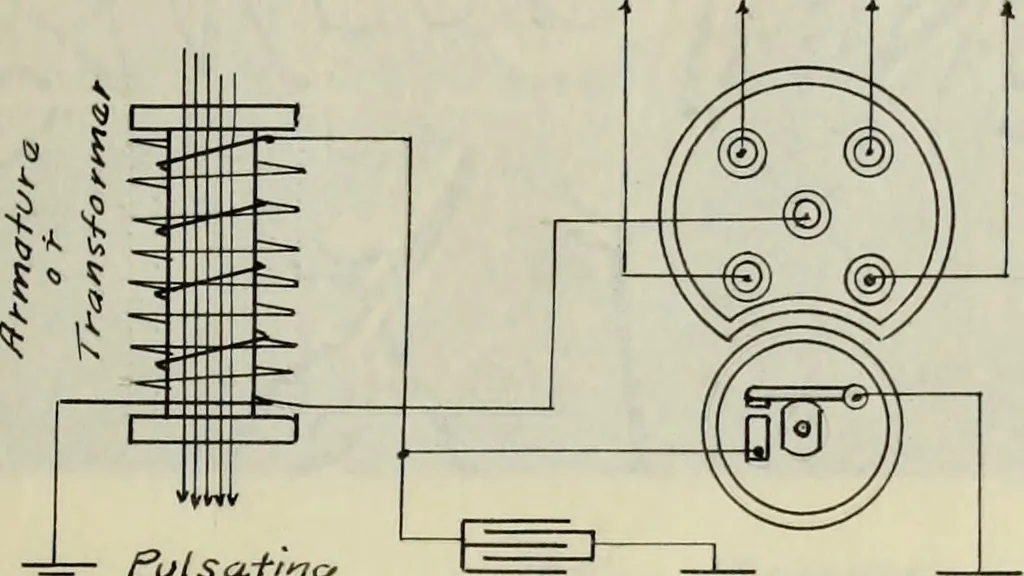

44 the magnets, the north and south poles of which are locatedabove and below the pictures. The wiring diagram of the Dixie high-tension is asshown in Fig. 46, T t r … PolSCL+lrjo {/ux. Cond<viS&r- The operation of this unit is as follows: Beginningfrom the first transient a short circuit current is establishedin the armature or primary coil which is suddenly interruptedat the instant the interrupter opens, this abrupt change ofthe current in the primary…
