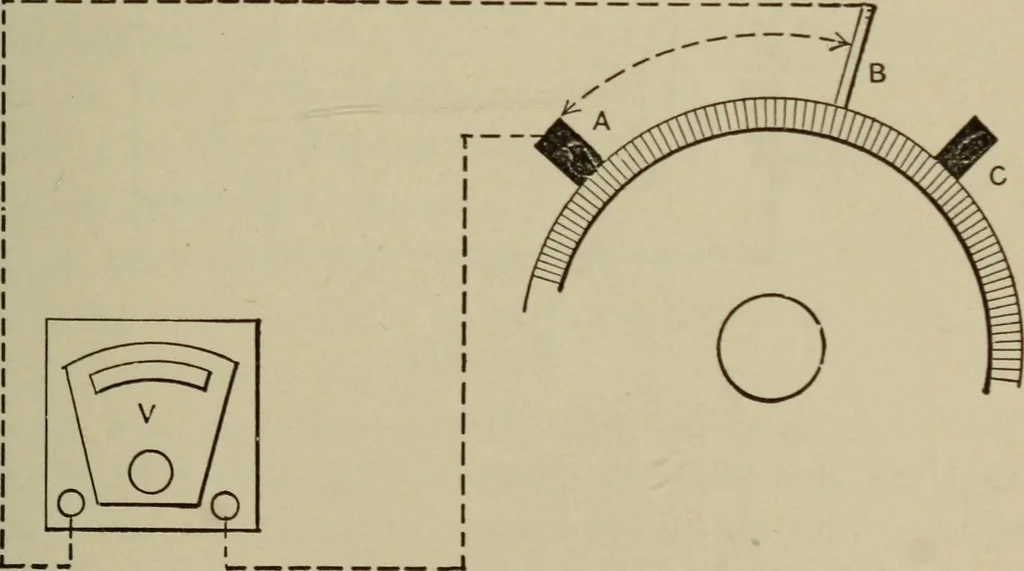

Fig. 95. … Fig. 96. These e.m.fs. being plotted on a chart give agraphic record of the distribution of field flux. Another method is Fig. 96, where one movablebrush is used, the other voltmeter connectionbeing on one of the regular working brushes. 174 ELECTRICAL INSTRUMENTS. This shows a gradual rise or fall…
